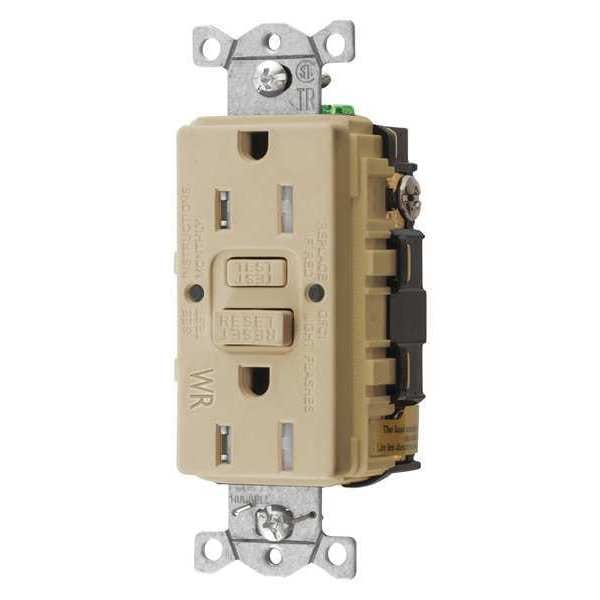

Este receptáculo GFCI de alta calidad y seguridad cuenta con una capacidad de 15 amperios y voltaje de 125VAC. El diseño en color marfil se adapta a cualquier ambiente. El modelo 5-15R garantiza un rendimiento confiable en la protección contra descargas eléctricas.
| Item | GFCI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15 A |
| GFCI | Yes |
| Phase | Single |
| Grounding | Grounded |
| Housing Color | Ivory |
| Housing Material | Zytel 101 |
| Mounting Type | Flush |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | NEC |
| Power Indicator | No |
| Weather Resistant | Yes |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | Yes |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method | Back, Side |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Surge Suppression | No |
| Application Environment | Commercial |
| NEMA Configuration | 5-15 |
| Voltage | 125VAC |
| Color | Ivory |
| Amps | 15 |
| HP | 0.5 hp |
| Self-Testing | Yes |
| Amps - Plugs and Receptacles | 15 |
| Amps - Plugs and Receptacles | 15 A |
| Outlet Type | Decorator |
| Mounting Type - Plugs and Receptacles | Flush |
| Reset Type | Automatic |
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Voltage - Plugs and Receptacles | 125 V |
| Contact Material | Brass |
| Grade | General Use |
| Flange Type | Non-Flanged |
| Market | Commercial |
| Face Plate Width | 1.8 in |
| Face Plate Height | 2.8 in |
| Includes Mounting Hardware | Yes |
| Number of Gangs | 1 |
| Self Testing | Yes |
| Resistance Properties | Tamper Resistant, Weather Resistant |
| Horsepower Rating | 0.5 HP |
| Features | Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof |
| Includes | Mounting Hardware |
| Surge Protection | No |
| Wire Connection Type | Screw Terminals |
| Mount Hole Center-to-Center Height | 3.3 in |
| Mount Type | Flush |
| Shrouded | No |
| Receptacle Type | Duplex |
| AFCI | No |
| Voltage Rating | 125 V AC |
| Type | Tamper-Resistant, Weather Resistant |
| Industry Standard(s) | Meets All NEC® Requirements |
| Nema Rating | 5-15R |
| Series | Heavy Duty |
| Voltage Rating Description | 125 V |
| Amperage Rating | 15 A |
| Style | Standard |
| Current / Amperage Rating | 15 A |
| Package Quantity | 1 |
