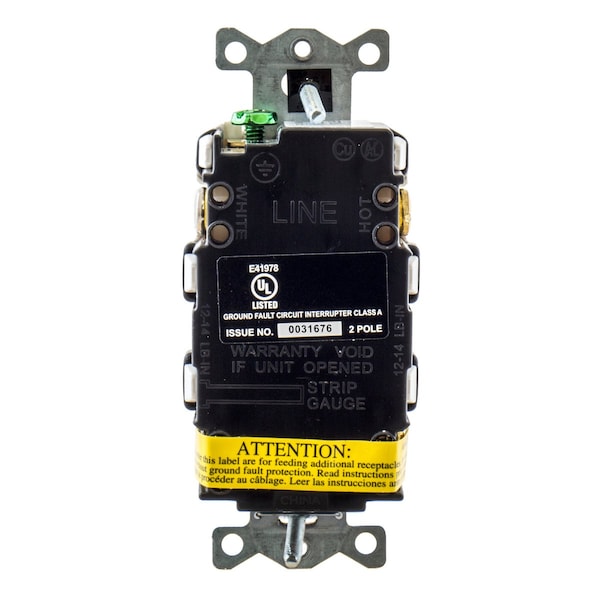

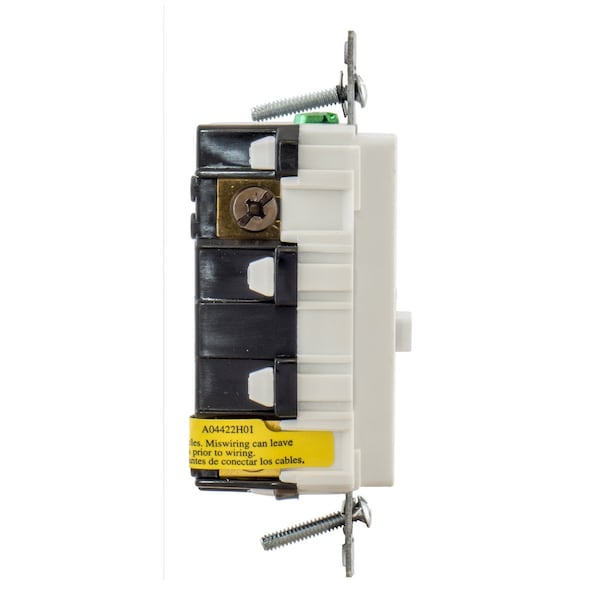

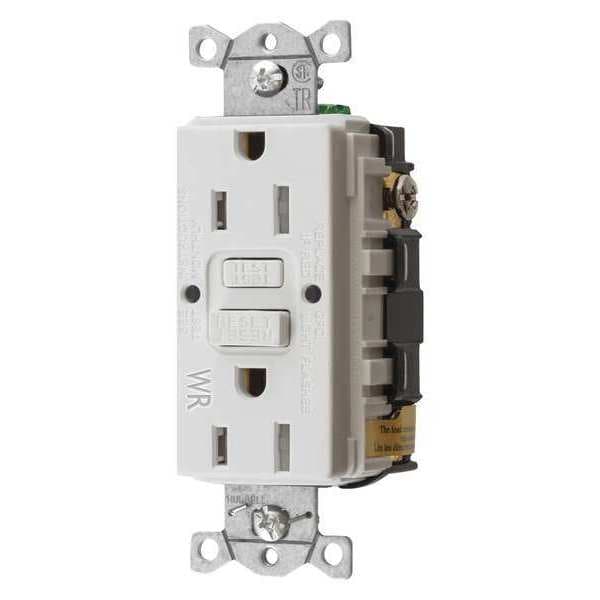

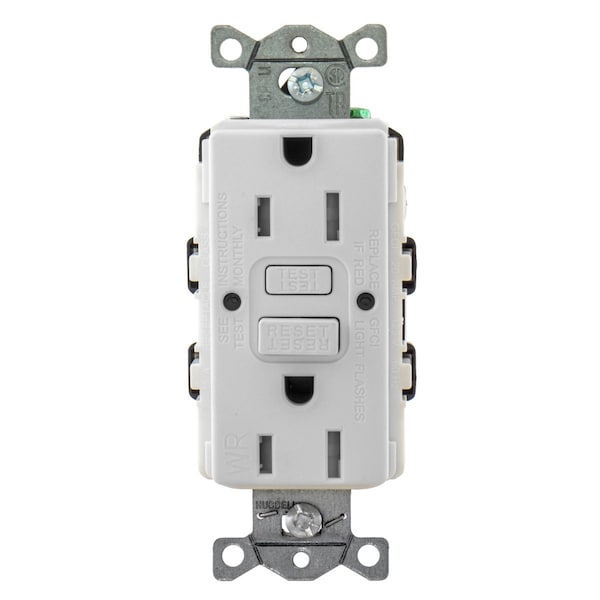

Este receptáculo GFCI de alta calidad es ideal para proteger contra descargas eléctricas y está diseñado para uso en interiores. Con una capacidad de 15 amperios y 125VAC, cumple con los estándares de seguridad y es de color blanco para combinar con cualquier decoración.
| Item | GFCI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15 A |
| Phase | Single |
| GFCI | Yes |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material | Zytel 101 |
| Mounting Type | Flush |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | NEC |
| Color | White |
| Application Environment | Commercial |
| Weather Resistant | Yes |
| Outlet Type | Decorator |
| NEMA Configuration | 5-15 |
| Power Indicator | No |
| Color - Plugs and Receptacles | White |
| Self-Testing | Yes |
| Voltage - Plugs and Receptacles | 125 V |
| Voltage | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Amps - Plugs and Receptacles | 15 |
| Mounting Type - Plugs and Receptacles | Flush |
| Reset Type | Automatic |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| HP | 0.5 hp |
| Item - Plugs and Receptacles | Receptacle |
| Amps - Plugs and Receptacles | 15 A |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Wiring Method | Back, Side |
| Weather Resistant - Plugs and Receptacles | Yes |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Amps | 15 |
| Includes | Mounting Hardware |
| Grade | General Use |
| Resistance Properties | Tamper Resistant, Weather Resistant |
| AFCI | No |
| Mount Hole Center-to-Center Height | 3.3 in |
| Face Plate Height | 2.8 in |
| Contact Material | Brass |
| Number of Gangs | 1 |
| Wire Connection Type | Screw Terminals |
| Features | Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof |
| Flange Type | Non-Flanged |
| Shrouded | No |
| Self Testing | Yes |
| Includes Mounting Hardware | Yes |
| Receptacle Type | Duplex |
| Market | Commercial |
| Mount Type | Flush |
| Horsepower Rating | 0.5 HP |
| Voltage Rating | 125 V AC |
| Surge Protection | No |
| Face Plate Width | 1.8 in |
| Type | Tamper-Resistant, Weather Resistant |
| Industry Standard(s) | Meets All NEC® Requirements |
| Series | Heavy Duty |
| Style | Standard |
| Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Current / Amperage Rating | 15 A |
| Nema Rating | 5-15R |
| Package Quantity | 1 |
