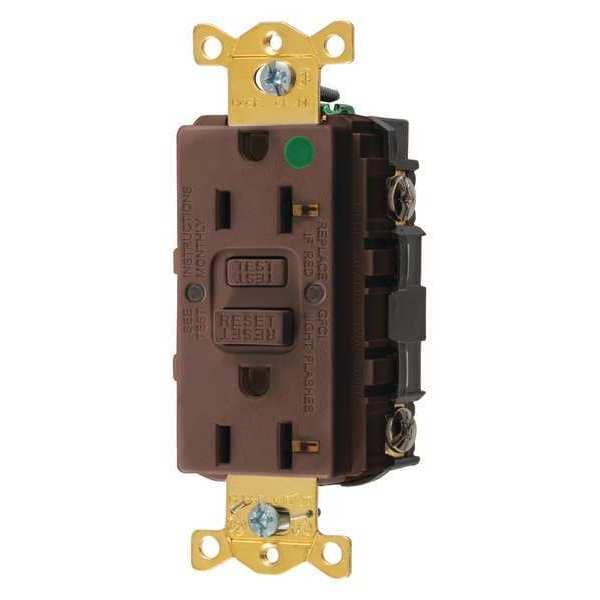

GFCI Receptacle, 20A, 125VAC, 5-20R, Brown
| Item | GFCI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20 A |
| Phase | Single |
| GFCI | Yes |
| Grounding | Grounded |
| Housing Color | Brown |
| Housing Material | Nylon |
| Mounting Type | Flush |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-20R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | NEC |
| Weather Resistant | No |
| Item - Plugs and Receptacles | Receptacle |
| Application Environment | Heavy Use Hospital Grade |
| Amps - Plugs and Receptacles | 20 A |
| Self-Testing | Yes |
| NEMA Configuration | 5-20 |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| HP | 1 hp |
| Color | Brown |
| Voltage - Plugs and Receptacles | 125 V |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Power Indicator | Yes |
| Reset Type | Automatic |
| Amps | 20 |
| Voltage | 125VAC |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Brown |
| Surge Suppression | No |
| Special Features | Ground Fault Indicator |
| Outlet Type | Decorator |
| Wiring Method | Back, Side |
| Tamper Resistant | No |
| Mounting Type - Plugs and Receptacles | Flush |
| Receptacle Type | Duplex |
| Mount Type | Flush |
| Number of Gangs | 1 |
| Horsepower Rating | 1 HP |
| Face Plate Width | 1.8 in |
| Shrouded | No |
| Market | Commercial |
| Flange Type | Non-Flanged |
| Surge Protection | No |
| Voltage Rating | 125 V AC |
| Contact Material | Brass |
| Mount Hole Center-to-Center Height | 3.3 in |
| Features | Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection |
| Self Testing | Yes |
| AFCI | No |
| Includes Mounting Hardware | Yes |
| Includes | Mounting Hardware |
| Face Plate Height | 2.8 in |
| Grade | Hospital Grade |
| Wire Connection Type | Screw Terminals |
| Type | Standard |
| Voltage Rating Description | 125 V |
| Nema Rating | 5-20R |
| Industry Standard(s) | Meets All NEC® Requirements |
| Current / Amperage Rating | 20 A |
| Series | Hospital Grade |
| Style | Standard |
| Package Quantity | 1 |
