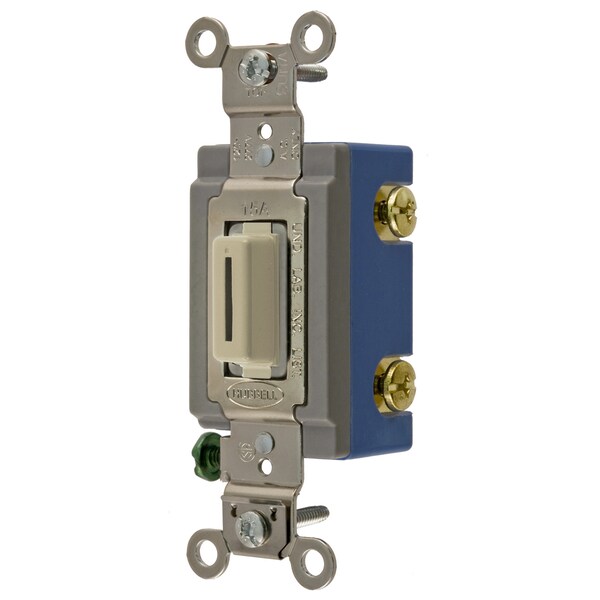

El interruptor de bloqueo industrial HBL de Hubbell Wiring Device-Kellems es ideal para aplicaciones de trabajo pesado. Cuenta con un diseño resistente y seguro, garantizando un rendimiento duradero en entornos industriales exigentes.
| Color | Ivory |
|---|---|
| Type | Locking |
| Style | Single Pole |
| Voltage Rating | 120-277 VAC |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Carton Quantity | 10 |
| Application | Back and Side Wired |
| Series | Extra Heavy Duty |
| Connectivity | Back and Side Wired |
| Temp. Rise | 30°C maximum at rated current |
| Amperage | 15 A |
| Wire Size | #14 AWG to #10 AWG |
| Current Rating | 15 A |
| Dimensions | 4.06 in x 1.31 in x 1.13 in |
| Number Of Poles | Single Pole |
| Max. Working Voltage | 277V AC |
| Ground Screw | Brass (Green) |
| Temperature Rise | 30°C maximum at rated current |
| Terminal Screws | Brass |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Flammability | UL 94V-2 |
| Top Material | Thermoset |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Max. Continuous Current | 15 A |
| Key Guide | Metallic, Ivory |
| Base Material | Thermoset, Blue |
| Contacts | Silver Alloy |
| Package Quantity | 1 |
