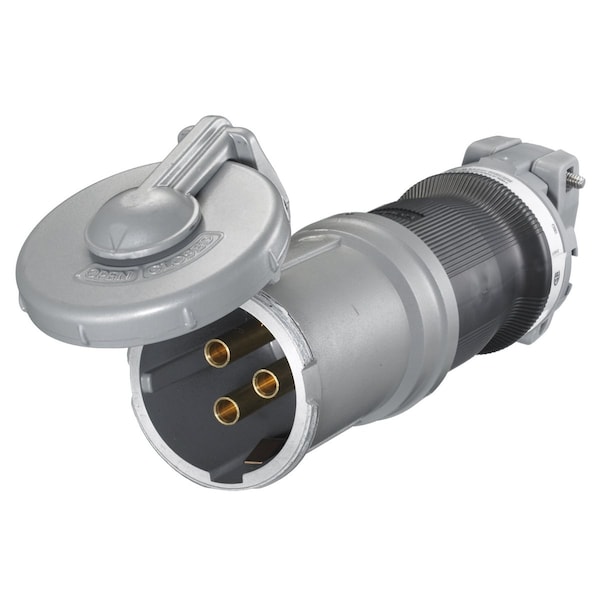

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding
| Item - Plugs and Receptacles | Insulgrip Connector devices |
|---|---|
| Body Material - Pin and Sleeve | Valox 357 |
| Amps - Plugs and Receptacles | 100 A |
| Voltage - Plugs and Receptacles | 250V DC/600V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Grounding Style | Style I |
| Standards | UL Listed, UL Standard 1682, UL50 and UL1010 (Plugs only), CSA Certified to CSA C22.2 No. 182.1, No.94 and No. 159 (Plugs only), UL Listed and CSA Certified Type 4X |
| Application | Metallic with Nylon Shroud |
| Material | Composite |
| Item Type | Standard |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Nema Rating | Non-NEMA |
| Number Of Conductors | Grounding Style 1 |
| Connectivity | Pressure Terminal Screws |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Conductor Range | #4 AWG to #2 AWG |
| Voltage Rating Description | 600V AC/250V DC |
| Material - Mounting Hardware | Cord Mounted |
| Display Size | Standard |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Watertight |
| Type | Watertight Connector |
| Current Rating | 100 A |
| Insulation | Insulated Body |
| Current / Amperage Rating | 100 A |
| Amperage Rating | 100 A |
| Series | UL 1686 Class 1 Insulgrip® |
| Style | Reversed Service,Style 1 Grounding |
| Package Quantity | 1 |
