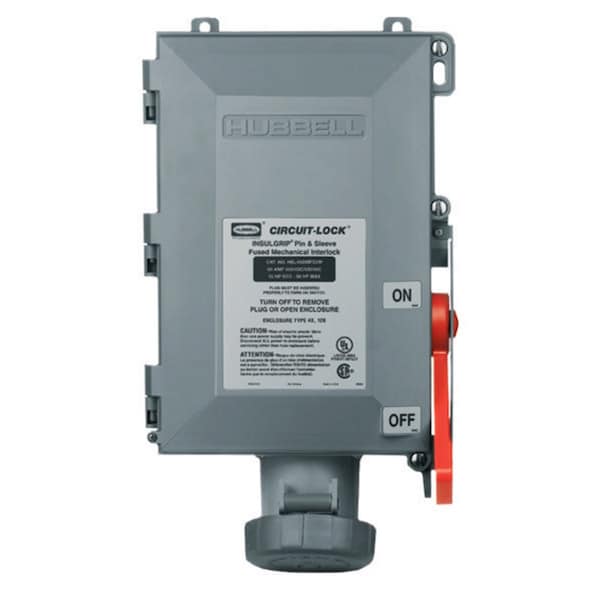

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Fused Mechanically Interlocked Receptacle, 60A 3-Phase Wye 120/208V AC
| Type | Mechanical Interlock |
|---|---|
| Phase | Three Phase |
| Material | Thermoplastic |
| Series | Fused Interlocks |
| Color | Blue |
| Application | High Ampacity Connections |
| Wire Size | #8 AWG to #2 AWG |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Pressure Terminal Screws |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max Working Voltage - 600V AC Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP66 Suitability Environmental - Operating Temperatures - Max. Continuous +75°C Min. Continuous -40°C Environmental - UV Resistance - All materials are UV stabilized Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustment feet Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Current Rating | 60 A |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 60 A |
| Current / Amperage Rating | 60 A |
| Nema Rating | Non-NEMA |
| Item Type | Fused Mechanically Interlocked Single |
| Number Of Wires | 5-Wire |
| Display Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Style | Standard Service |
| Wattage | 12480 |
| Industry Standard(s) | CSA Certified UL Listed for US and Canada |
| Voltage Rating Description | 3 Phase Y 120/208 VAC |
| Number Of Poles | 4-Pole |
| Package Quantity | 1 |
