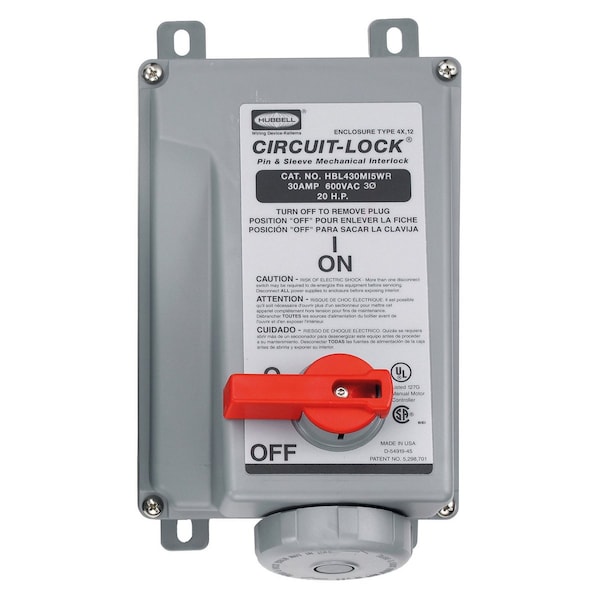

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Delta 600V AC,
| Type | Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Valox |
| Voltage | 600V |
| Amps - Plugs and Receptacles | 30 A |
| Color - Plugs and Receptacles | Black |
| Number of Poles | 3 |
| Phase | 3 |
| Number of Wires | 4 |
| Material | Thermoplastic |
| Features | IEC Mechanical Interlock, UV Stabilized |
| Standards | UL Listed, CSA Certified, UL746C |
| NEMA Rating | 4X, 12 |
| Application | High Ampacity Watertight Connections |
| Wire Size | 4 to 12 AWG |
| Operating Temp. Range | -40 to 75° C |
| IP Rating | IP67 |
| Connectivity | Pressure Terminal Screws |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 30 A |
| Item Type | Mechanically Interlocked Single, Reversed |
| Environmental Conditions | Watertight |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Style | Reverse Service |
| Display Size | Standard Sized Product |
| Series | Unfused Circuit-Lock |
| Current / Amperage Rating | 30 A |
| Industry Standard(s) | UL Listed |
| Wattage | 18000 |
| Current Rating | 30 A |
| Voltage Rating Description | 3 Phase 600 VAC |
| Package Quantity | 1 |
