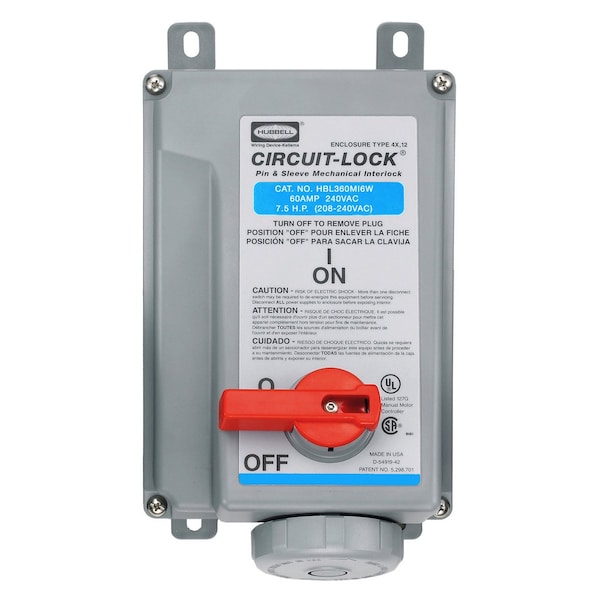

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 250V AC, Watertight
| Type | Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Valox |
| Voltage | 250V |
| Amps - Plugs and Receptacles | 60 A |
| Color - Plugs and Receptacles | Blue |
| Number of Poles | 2 |
| Phase | Single Phase |
| Number of Wires | 3 |
| Material | Thermoplastic |
| NEMA Rating | 4X, 12 |
| Color | Blue |
| HP | 7-1/2 |
| Standards | UL Listed, CSA Certified, UL746C |
| Features | IEC Mechanical Interlock, UV Stabilized |
| Application | High Ampacity Watertight Connections |
| IP Rating | IP67 |
| Wire Size | 2 to 10 AWG |
| Operating Temp. Range | -40 to 75° C |
| Current / Amperage Rating | 60 A |
| Connectivity | Pressure Terminal Screws |
| Item Type | Mechanically Interlocked Single |
| Style | Standard Service |
| Current Rating | 60 A |
| Wattage | 15000 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 240 VAC |
| Series | Unfused Circuit-Lock |
| Amperage Rating | 60 A |
| Industry Standard(s) | UL Listed |
| Display Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
