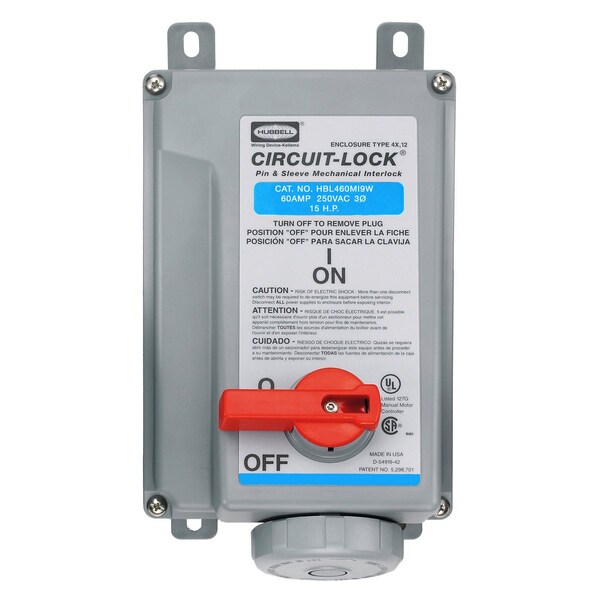

Descubre los productos de alta resistencia de Hubbell Wiring Device-Kellems, incluyendo los dispositivos Pin y Sleeve IEC de grado industrial. Este receptáculo hembra con bloqueo mecánico es ideal para aplicaciones industriales de 60A 3-Fase Delta 250V AC.
| Phase | 3 |
|---|---|
| Number of Poles | 3 |
| Number of Wires | 4 |
| Body Material - Pin and Sleeve | Valox |
| Amps - Plugs and Receptacles | 60 A |
| Material | Thermoplastic |
| Color - Plugs and Receptacles | Blue |
| Features | IEC Mechanical Interlock, UV Stabilized |
| Type | Receptacle |
| Voltage | 250V |
| Color | Blue |
| NEMA Rating | 4X, 12 |
| Standards | UL Listed, CSA Certified, UL746C |
| Application | High Ampacity Watertight Connections |
| IP Rating | IP67 |
| Operating Temp. Range | -40° C to 75° C |
| Wire Size | 2 to 10 AWG |
| Current Rating | 60 A |
| Connectivity | Pressure Terminal Screws |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 15000 |
| Style | Reverse Service |
| Voltage Rating Description | 3 Phase 240 VAC |
| Industry Standard(s) | UL Listed |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 60 A |
| Series | Unfused Circuit-Lock |
| Environmental Conditions | Watertight |
| Amperage Rating | 60 A |
| Display Size | Standard Sized Product |
| Item Type | Mechanically Interlocked Single, Reversed |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Package Quantity | 1 |
