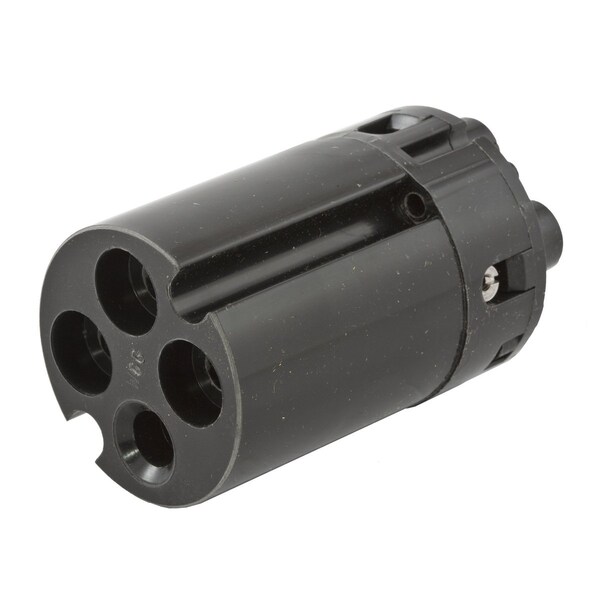

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Replacement Interior, For 100A 4- Wire
| Type | Replacement Interior |
|---|---|
| Color | Black |
| Material | Thermoset |
| Display Size | Standard Sized Product |
| Series | Accessories |
| Material - Mounting Hardware | Screw Mounting |
| Voltage Rating | 380-415 VAC |
| Industry Standard(s) | UL Listed |
| Item Type | Replacement Interior |
| Environmental Conditions | Watertight When Installed |
| Voltage Rating Description | 380-415 VAC |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 125 A |
| Nema Rating | Non-NEMA |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Amperage Rating | 125 A |
| Style | For Receptacles/Connectors |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Ingress Protection - IP67 Suitability Environmental - Operating Temperatures - Max. Continuous:75°C Min. Continuous:-40°C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Package Quantity | 1 |
