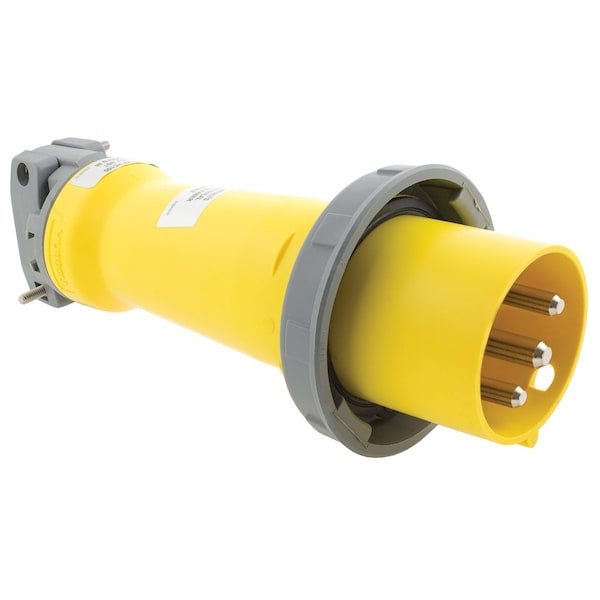

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male Plug, 16A 100-130V, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
| Item - Plugs and Receptacles | Plug |
|---|---|
| Amps - Plugs and Receptacles | 16 A |
| Color - Plugs and Receptacles | Yellow |
| Number of Poles | 2 Pole |
| Grounding Style | iec-devices |
| Max. Voltage | 600 V |
| Type | Watertight Plug |
| Color | Yellow |
| Standards | UL Listed,UL Standard UL1682 & UL 1686C2, CSA Certified File LR280C for Plugs. |
| Phase | Single Phase |
| Hub Style | Standard |
| Material | Composite |
| Application | High Ampacity Connections |
| Number Of Wires | 3 |
| Current Rating | 16 A |
| Cord Type | All Portable |
| Material - Mounting Hardware | Cord Mounted |
| Connectivity | Pressure Terminal Screws |
| Wire Size | #14 AWG to #10 AWG |
| Style | Standard Service |
| Amperage Rating | 16 A |
| Environmental Conditions | Watertight |
| Item Type | Male Plug |
| Voltage Rating Description | 100-130 VAC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | Non-NEMA |
| Display Size | Standard Sized |
| Current / Amperage Rating | 16 A |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Standard UL1682 and UL 1686C2 |
| Series | HBL Heavy Duty |
| Package Quantity | 1 |
