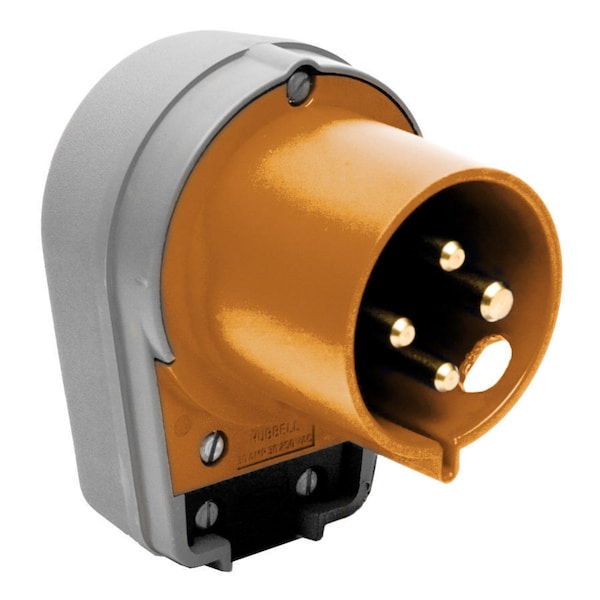

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange
| Item - Plugs and Receptacles | Plug |
|---|---|
| Amps - Plugs and Receptacles | 30 A |
| Color - Plugs and Receptacles | Orange |
| Number of Poles | 3 Pole |
| Number of Wires | 4 |
| Grounding Style | iec-devices |
| Type | Angled Plug |
| Features | Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle. |
| Max. Voltage | 600 V |
| Standards | UL Listed, CSA Certified |
| Hub Style | Standard |
| Phase | Single Phase |
| Color | Orange |
| Application | High Ampacity Connections |
| Material | Composite |
| Voltage Rating Description | 125/250 VAC |
| Current Rating | 30 A |
| Wire Size | #12 AWG to #10 AWG |
| Material - Mounting Hardware | Cord Mounted |
| Wattage | 7,500 |
| Current / Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | Non-NEMA |
| Performance | Electrical - Current Interrupting - Certified for current interruption at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 250V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP22 Suitability Environmental - Operating Temperatures - Max. Continuous +75°C Min. -40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American convention |
| Display Size | Standard Sized |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Male Plug |
| Style | Standard Service |
| Amperage Rating | 30 A |
| Cord Type | All Portable |
| Connectivity | Pressure Terminal Screws |
| Series | Low Profile |
| Package Quantity | 1 |
