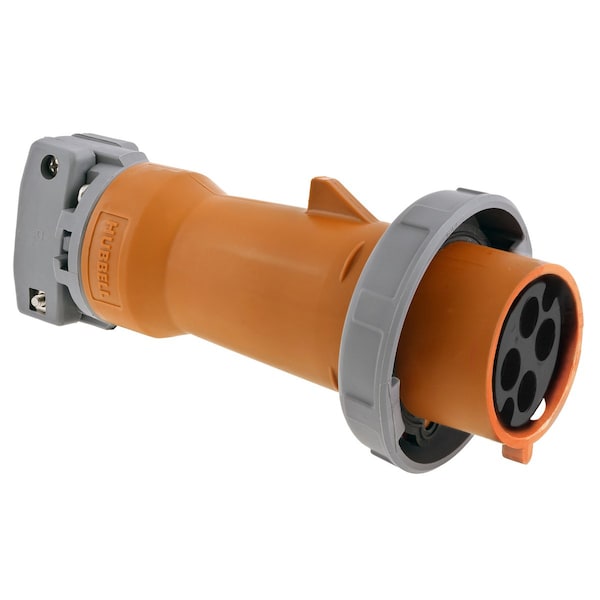

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 125/250V, 3-Pole 4-Wire Grounding, Watertight- Reversed Service
| Item - Plugs and Receptacles | Plug |
|---|---|
| Amps - Plugs and Receptacles | 60 A |
| Color - Plugs and Receptacles | Orange |
| Number of Poles | 3 Pole |
| Number of Wires | 4 |
| Grounding Style | iec-devices |
| Max. Voltage | 600 V |
| Hub Style | Reversed |
| Phase | Single Phase |
| Type | Mating Plug |
| Color | Orange |
| Standards | UL Listed,UL Standard UL1682 & UL 1686C2, CSA Certified File LR280C for Plugs, UL Classified to IEC 309-1 |
| Material | Composite |
| Amperage Rating | 60 A |
| Environmental Conditions | Watertight |
| Wire Size | #8 AWG to #2 AWG |
| Display Size | Standard Sized |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Series | Unfused Circuit-Lock |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperature - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Item Type | Male Plug- Reversed |
| Style | Reverse Service |
| Current / Amperage Rating | 60 A |
| Material - Mounting Hardware | Cord Mounted |
| Connectivity | Pressure Terminal Screws |
| Current Rating | 60 A |
| Nema Rating | Non-NEMA |
| Industry Standard(s) | CSA Standard C22.2 No. 182.1 UL Classified to IEC60309-1 UL Listed, File E146032 |
| Voltage Rating Description | 120/240 VAC |
| Cord Type | All Portable |
| Package Quantity | 1 |
