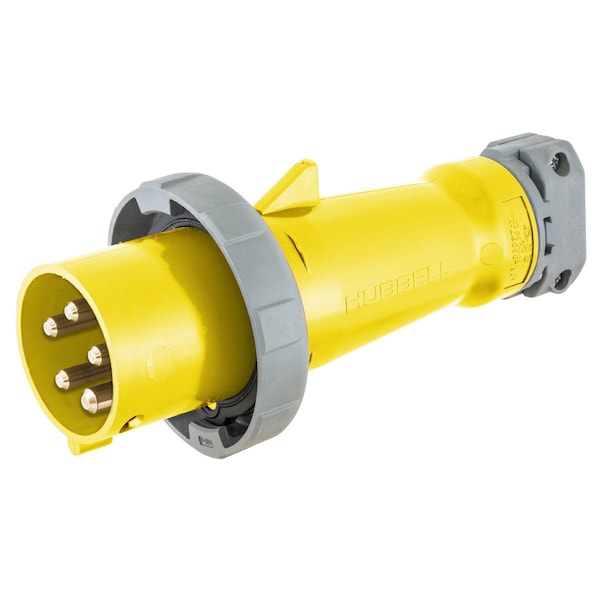

Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Plug, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws
| Type | Watertight Plug |
|---|---|
| Color | Yellow |
| Material | Composite |
| Phase | Three Phase |
| Application | Marine Wiring Devices |
| Number Of Poles | 4-Pole |
| Wire Size | #3 AWG to #1/0 AWG Copper Wire Only |
| Environmental Conditions | Watertight |
| Amperage Rating | 100 A |
| Current Rating | 100 A |
| Item Type | Male Plug |
| Number Of Wires | 5-Wire |
| Nema Rating | Non-NEMA |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wattage | 48,000 |
| Current / Amperage Rating | 100 A |
| Cord Type | All Portable |
| Display Size | Standard Sized |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Series | Corrosion Resistant |
| Voltage Rating Description | 3 Phase Y 277/480 VAC |
| Style | Standard Service |
| Connectivity | Pressure Terminal Screws |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033 |
| Package Quantity | 1 |
