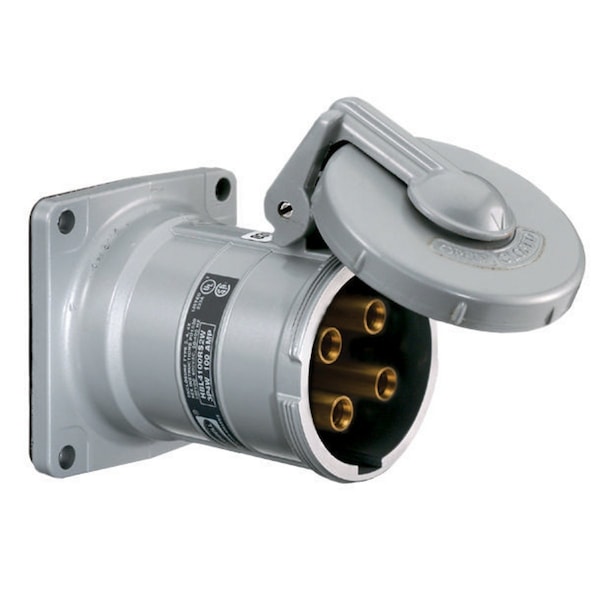

Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 600V AC, 2- Pole 3-Wire Grounding Style 2 and Black
| Item | Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Epoxy Painted Aluminum |
| Type | Receptacle |
| Voltage | 250V DC/600V AC |
| Amps - Plugs and Receptacles | 60 A |
| Phase | Single Phase |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Material | Thermoplastic |
| Grounding Style | Style II |
| NEMA Rating | 3, 4, 4X |
| Standards | UL 1682, UL50 and UL1010, CSA C22.2 No. 182.1, No.94 and No. 159, CSA C22.2 No.0.17 |
| Application | Metallic with Nylon Shroud |
| Wire Size | 6 to 4 AWG |
| Operating Temp. Range | -40 to 75° C |
| Current / Amperage Rating | 60 A |
| Voltage Rating Description | 600V AC/250V DC |
| Style | Reversed Service,Style 2 Grounding |
| Connectivity | Pressure Terminal Screws |
| Item Type | Single Flanged-Reversed |
| Series | UL 1686 Class 1 Insulgrip® |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Display Size | Standard Sized Product |
| Current Rating | 60 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Amperage Rating | 60 A |
| Environmental Conditions | Watertight |
| Wattage | 36000 |
| Package Quantity | 1 |
