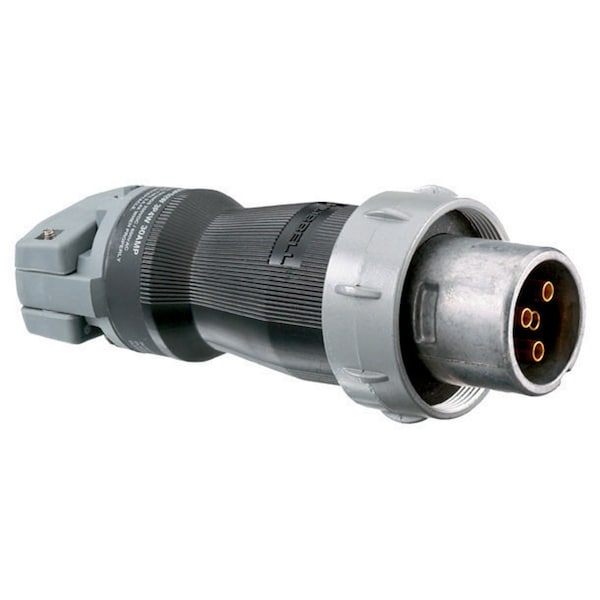

Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 600V AC, Style 1 , Watertight
| Item - Plugs and Receptacles | Plug |
|---|---|
| Amps - Plugs and Receptacles | 30 A |
| Number of Poles | 4-Pole |
| Number of Wires | 5 |
| Grounding Style | Style I |
| Type | Watertight Plug |
| Features | Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle. |
| Material | Composite |
| Mounting Box | Stainless Steel (300 Series) |
| Hub Style | Standard |
| Max. Voltage | 600 V |
| Standards | UL Listed, CSA Certified |
| Application | Metallic with Nylon Shroud |
| Material - Mounting Hardware | Cord Mounted |
| Cord Type | All Portable |
| Wire Size | #10 AWG to #8 AWG |
| Voltage Rating Description | 600V AC/250V DC |
| Nema Rating | Non-NEMA |
| Style | Standard Service,Style 1 Grounding |
| Series | UL 1686 Class 1 Insulgrip® |
| Item Type | Male Plug |
| Current / Amperage Rating | 30 A |
| Display Size | Standard Sized |
| Current Rating | 30 A |
| Environmental Conditions | Watertight |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Package Quantity | 1 |
