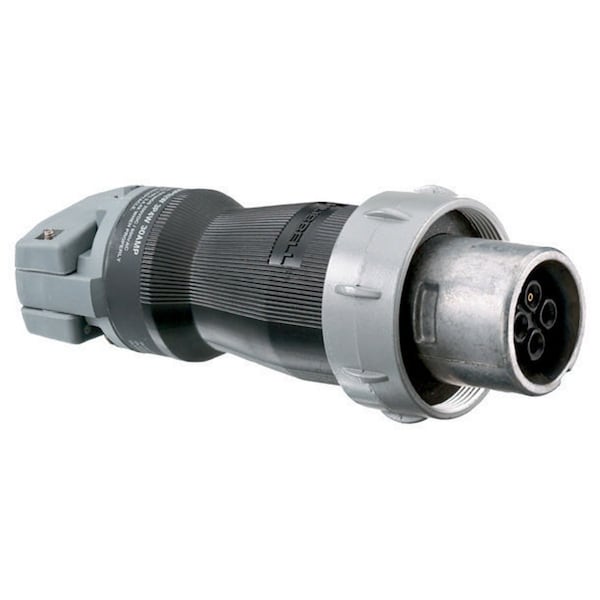

Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 600V AC, Style 1 , Watertight- Reversed
| Item - Plugs and Receptacles | Plug |
|---|---|
| Amps - Plugs and Receptacles | 60 A |
| Number of Poles | 4-Pole |
| Grounding Style | Style I |
| Type | Watertight Plug |
| Max. Voltage | 600 V |
| Mounting Box | Stainless Steel (300 Series) |
| Hub Style | Reversed |
| Features | Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle. |
| Material | Composite |
| Standards | UL Listed, CSA Certified |
| Application | Metallic with Nylon Shroud |
| Number Of Wires | 5 |
| Voltage Rating Description | 600V AC/250V DC |
| Display Size | Standard Sized |
| Current Rating | 60 A |
| Cord Type | All Portable |
| Wire Size | #6 AWG to #4 AWG |
| Current / Amperage Rating | 60 A |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682,UL 50, and UL 1010 |
| Material - Mounting Hardware | Cord Mounted |
| Amperage Rating | 60 A |
| Connectivity | Pressure Terminal Screws |
| Item Type | Male Plug- Reversed |
| Series | UL 1686 Class 1 Insulgrip® |
| Environmental Conditions | Watertight |
| Nema Rating | Non-NEMA |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Style | Reversed Service,Style 1 Grounding |
| Package Quantity | 1 |
