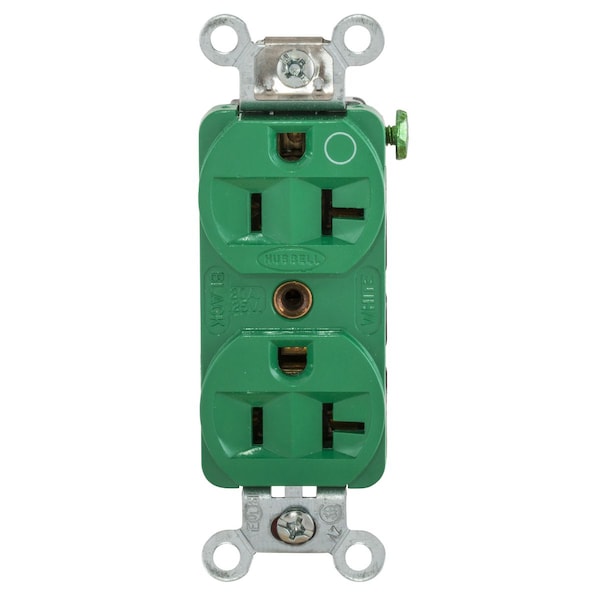

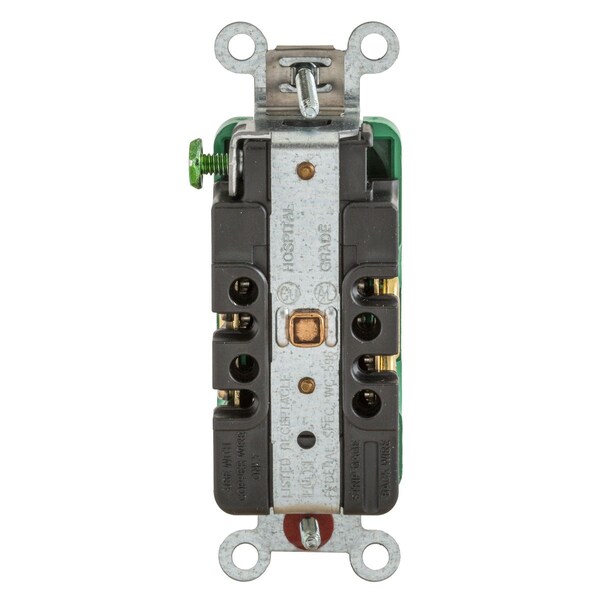

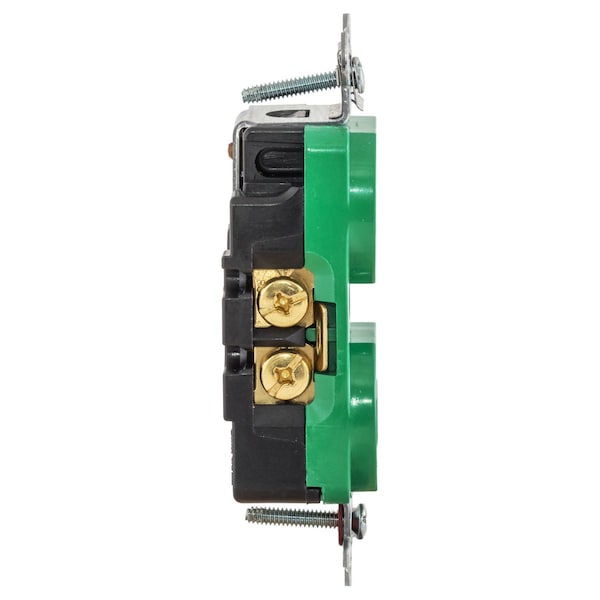

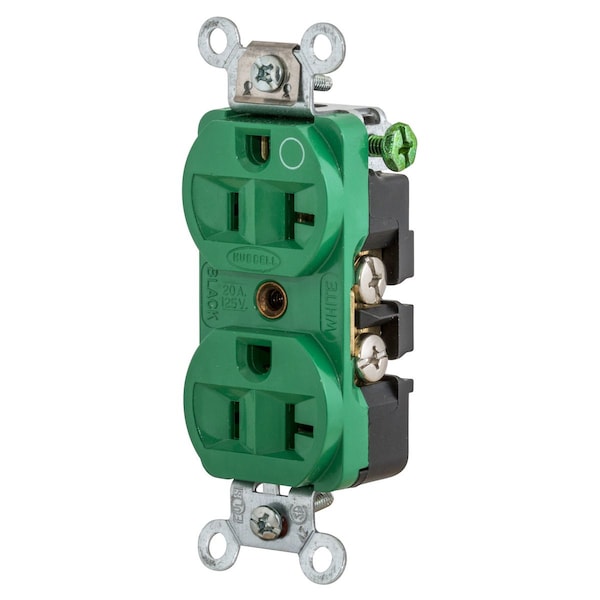

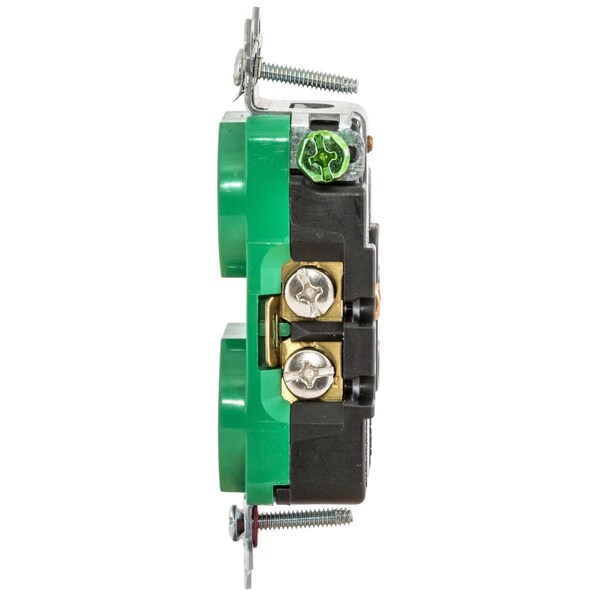

Hospital Grade Duplex Receptacle -Slender/Compact
| Height | 1.05 in |
|---|---|
| Phase | Single Phase |
| Width | 1.33 in |
| Color | Green |
| Type | Receptacle |
| Current Rating | 20 A |
| Wire Size | #12 AWG to #10 AWG |
| Weight | 0.25 lb |
| Display Size | Slender/Compact |
| Brand | Hubbell Wiring Device-Kellems |
| Connectivity | Back and Side Wired Screw Terminals |
| Maximum Horsepower | 1 |
| Item | Traditional Duplex |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 2-Pole |
| Voltage Rating | 125 V |
| Carton Quantity | 10 |
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Nema Rating | 5-20R |
| Amperage | 20 A |
| UPC | 783585000000 |
| Length | 3.28 in |
| Series | Hospital Grade |
| Material | Thermoplastic |
| Style | Finder Groove Face |
| Number Of Wires | 3-Wire |
| Terminal Screws | Brass |
| Current Interrupting | Certified for current interrupting at full rated current |
| Automatic Self-grounding Staple | Stainless steel |
| Mounting Screws | Zinc plated steel |
| Terminal Accommodation | stranded, solid copper wire only |
| Clamping Plate | Plated steel |
| Mounting Strap | .050 in. Galvanized steel |
| Flammability | UL 94 V-0 |
| Ground Contacts | .031 in. Brass |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Contacts | 0.031" Brass |
| Dielectric Voltage | Withstands 2,000V minimum |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Device Color | Green |
| Face | PBT |
| Base | PBT |
| Package Quantity | 1 |
