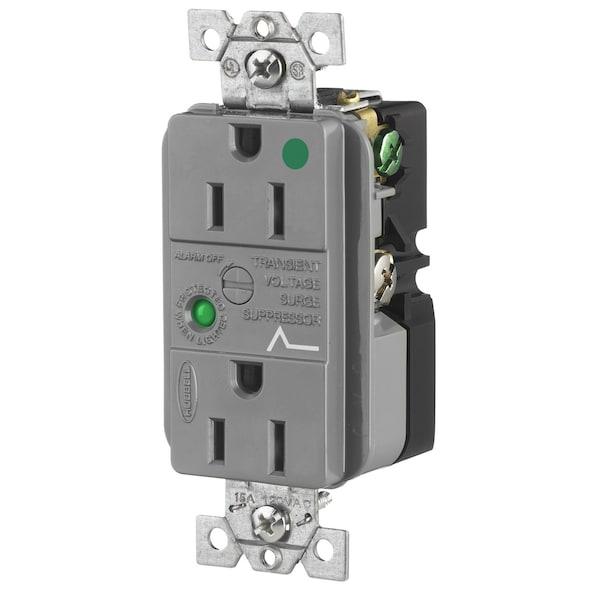

Hospital Grade Surge Suppression Receptacle, Duplex, 15A 125V, 5-15R, Gray
| Type | Duplex |
|---|---|
| Voltage | 125 V |
| Color | Gray |
| Material | Composite |
| Phase | Single Phase |
| Response Time | 5 |
| Nema Rating | 5-15R |
| Series | Hospital Grade |
| Brand | Hubbell Wiring Device-Kellems |
| Mounting Hardware Material | Mounting Screws |
| Connectivity | Terminal Screws |
| Carton Quantity | 10 |
| Display Size | Standard |
| Indicator Type | LED and Audible Alarm |
| Item | Surge Protection Receptacles |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Frequency | 60 Hz |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Amperage | 15 A |
| Current Rating | 15 A |
| Voltage Rating | 125 V |
| Outlet | Straight Blade |
| Application | Decorator Duplex with Light and Alarm |
| Product Type | Duplex-receptacles |
| Receptacle Type | TVSS |
| Poles and Wires | 2 Pole, 3 Wire |
| Device Grade | Heavy Duty Spec Grade |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Item Type | Surge Protection Receptacles |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Frequency Rating | 60 Hz |
| Material - Mounting Hardware | Mounting Screws |
| Indicator(s) Type | LED and Audible Alarm |
| Amperage Rating | 15 A |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186 |
| Performance | Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs) Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C) |
| Package Quantity | 1 |
