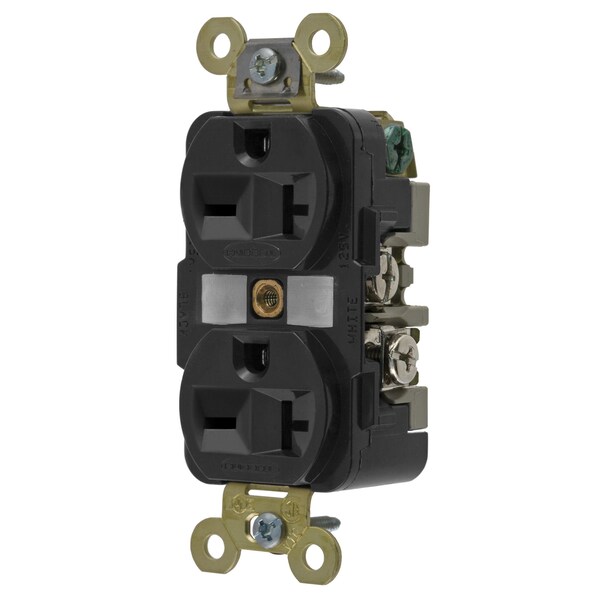

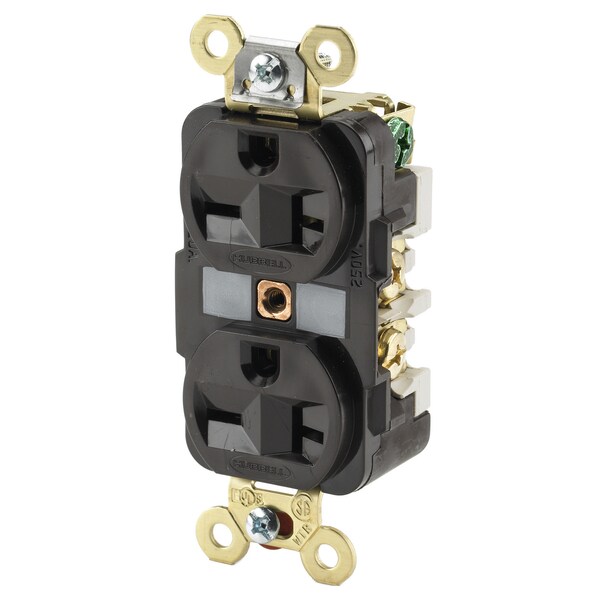

El Hubbell HBL5462BK es un duplicador de toma de corriente con toma a tierra individual que soporta hasta 20 amperios y 250 voltios. Con diseño en color negro, es ideal para aplicaciones comerciales y residenciales.
| Item | Traditional Duplex |
|---|---|
| Height | 1.19 in |
| Voltage | 250 V |
| Phase | Single Phase |
| Wiring Method | Back, Side |
| Width | 1.65 in |
| Type | Standard Duplex |
| Color | Black |
| Series | Extra Heavy Duty |
| Voltage Rating | 250 V |
| Amperage | 20 A |
| Weight | 0.25 lb |
| Dielectric Strength | Withstands 2,000V minimum |
| Maximum Horsepower | 2 |
| Carton Quantity | 10 |
| Mounting Hardware Material | Screw Mounting |
| UPC | 783585000000 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 20 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Dimensions | 3.28 in x 1.65 in x 1.19 in |
| Wattage | 5000 W |
| Nema Rating | 6-20R |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Style | Finder Groove Face |
| Length | 3.28 in |
| Application | Extra Heavy Duty |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #14 AWG to #10 AWG |
| Brand | Hubbell Wiring Device-Kellems |
| NEMA No. | 6-20R |
| Standard | NEMA |
| Mounting Strap Material | .050" Brass |
| Receptacle Style | Duplex |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Top Material | Nylon |
| Dielectric Voltage | Withstands 2,000V minimum |
| Receptacle Grade | Heavy Duty Spec Grade |
| Horsepower | 2 |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Flammability | Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., Top: UL 94V-2, Base: UL 94V-0 |
| Base Material | Reinforced PET |
| Product Type | Flush-receptacles |
| Face Style | Finder Groove |
| Certification | UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285. |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Other Available Colors | Brown, Ivory, Gray, Black |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Rating | 20A, 250V |
| Mounting Screw Material | Stainless Steel |
| Device Color | Black |
| Current Interrupting | Certified for current interrupting at full rated current |
| Power Contacts Material | Brass |
| Auto Ground Clip Material | Stainless Steel |
| Face Shape | Traditional |
| Package Quantity | 1 |
