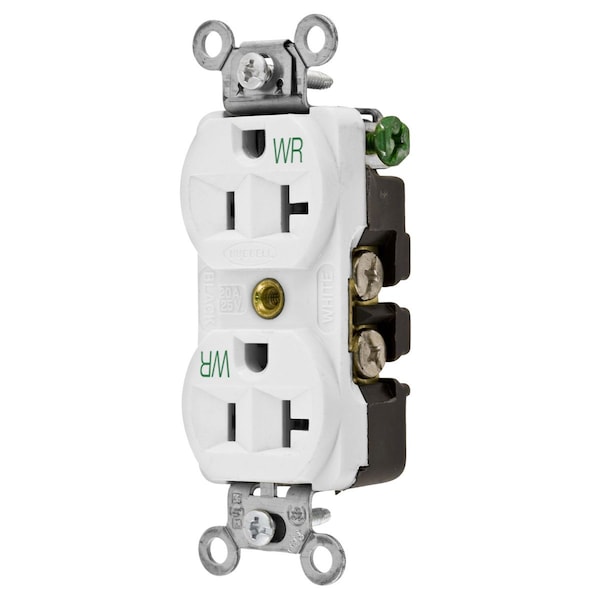

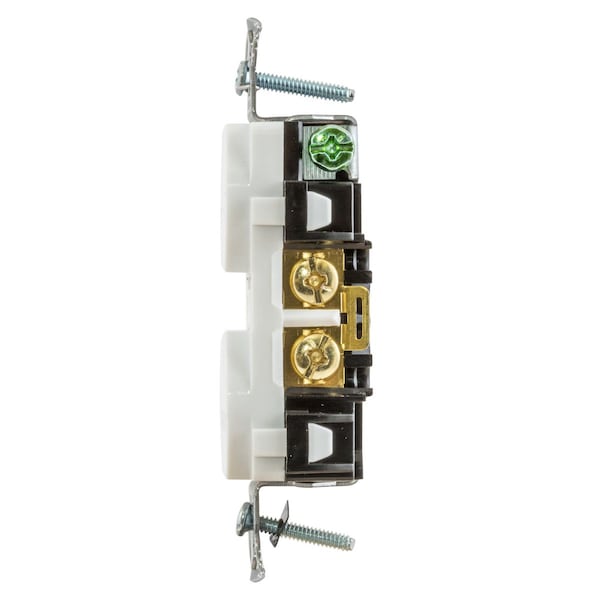

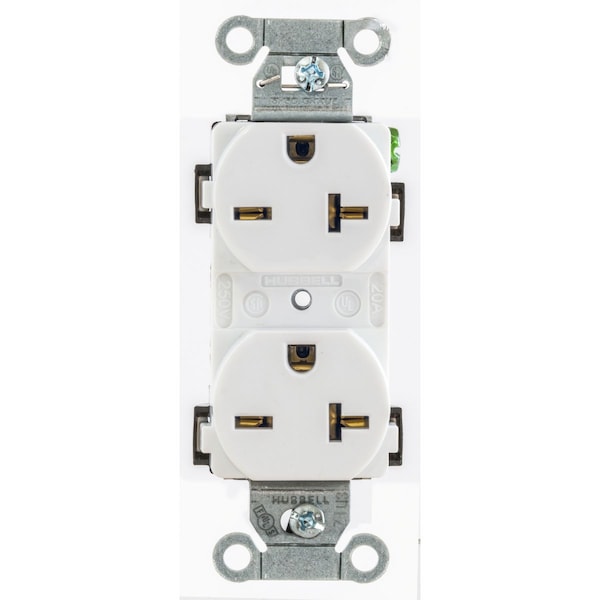

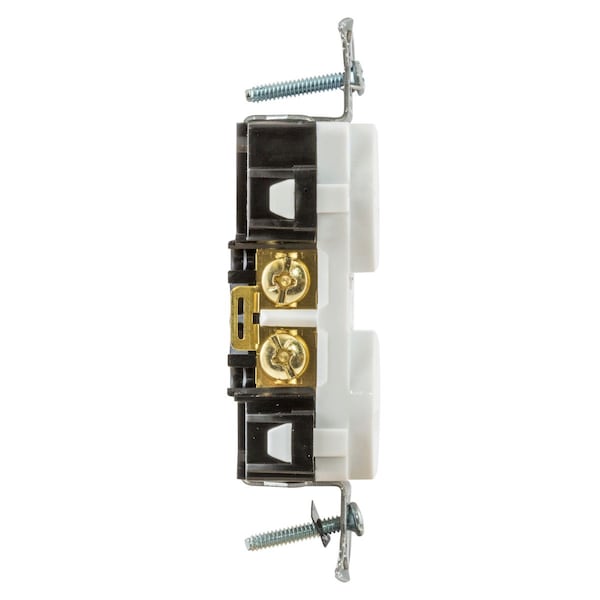

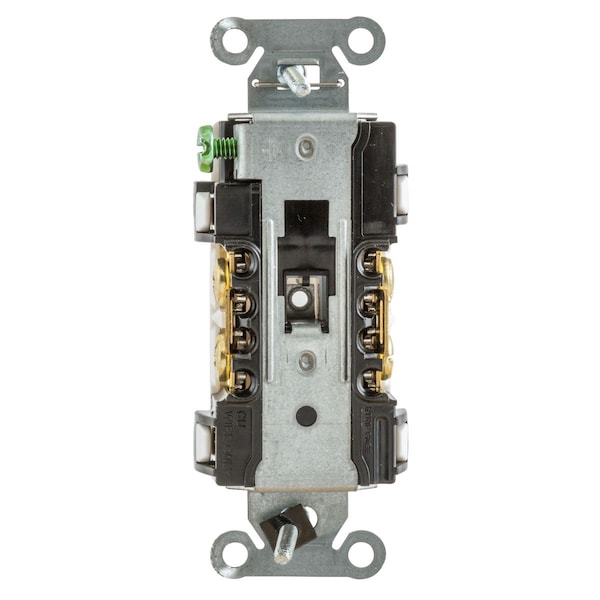

Hubbell-Pro Heavy Duty Duplex Receptacles
| Type | Weather Resistant Duplex |
|---|---|
| Color | White |
| Wiring Method | Back, Side |
| Voltage | 125 V |
| Size | Standard Sized Product |
| Material | Thermoplastic/Composite |
| Phase | Single Phase |
| Mounting Type | Screw Mount |
| Nema Rating | 5-20R |
| Style | Finder Groove Face |
| Temp. Rating | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Series | Hubbell-PRO |
| Wattage | 1875 W |
| Item | Traditional Duplex |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Carton Quantity | 10 |
| Application | Hubbell-Pro Extra Heavy Duty |
| Display Size | Standard Sized Product |
| Number Of Wires | 3-Wire |
| Environmental Rating | Weather Resistant |
| Amperage | 20 A |
| Wire Size | #12 AWG to #10 AWG |
| Maximum Horsepower | 1 |
| Voltage Rating | 125 V |
| Dielectric Strength | Withstands 2,000V minimum |
| Mounting Hardware Material | Screw Mounting |
| Number Of Poles | 2-Pole |
| Connectivity | Back and Side Wired |
| Dimensions | 3.28 in x 1.41 in x 1.09 in |
| Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA WD-6 Compliant |
| Current Rating | 20 A |
| Brand | Hubbell Wiring Device-Kellems |
| Other Available Colors | Brown, Ivory, White, Gray, Black |
| Product Type | Flush-receptacles |
| Certification | UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285. |
| Base Material | Nylon |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Dielectric Voltage | Withstands 2,000V minimum |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Face Shape | Traditional |
| Rating | 20A, 125V |
| Mounting Strap Material | Steel |
| Face Style | Finder Groove |
| Receptacle Style | Duplex |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Top Material | Nylon |
| Flammability | UL 94 V2. |
| Device Color | White |
| Horsepower | 1 |
| NEMA No. | 5 to 20 R |
| Mounting Screw Material | Steel-Zinc Plated |
| Power Contacts Material | .030" Brass |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current |
| Current Interrupting | Certified for current interrupting at full rated current |
| Auto Ground Clip Material | Stainless Steel |
| Receptacle Grade | Hubbell-Pro Series, Weather Resistant |
| Package Quantity | 1 |
