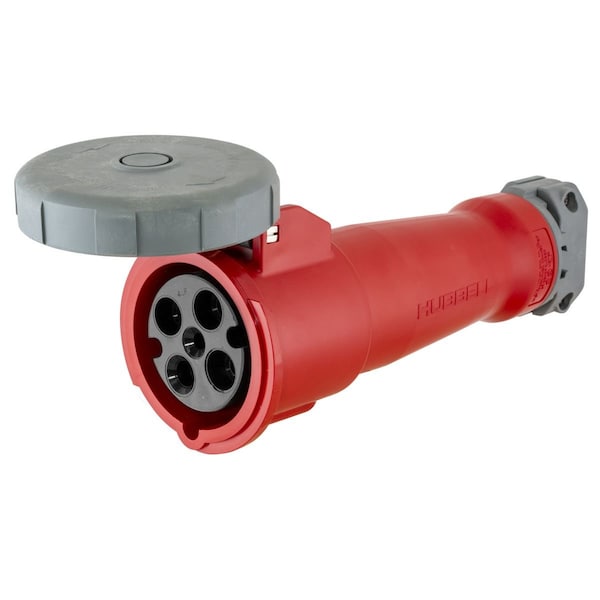

IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 32A 380/415V, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
| Item - Plugs and Receptacles | Watertight IEC Connector |
|---|---|
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Amps - Plugs and Receptacles | 32 A |
| Voltage - Plugs and Receptacles | 380/440V |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Standards | UL Listed File E146032, E146033, UL Standard UL1682 & UL1686C2, CSA Certified File LR280C, LR285C, CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1 |
| Color | Red Rouge |
| Application | High Ampacity Connections |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033 |
| Connectivity | Pressure Terminal Screws |
| Material - Mounting Hardware | Cord Mounted |
| Voltage Rating Description | 380 V 50Hz/440 V 60Hz |
| Item Type | Standard |
| Conductor Range | #12 AWG to #8 AWG |
| Environmental Conditions | Watertight |
| Current Rating | 32 A |
| Current / Amperage Rating | 32 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Insulation | Insulated Body |
| Style | Standard Service |
| Nema Rating | Non-NEMA |
| Number Of Conductors | 4-Wire Grounding |
| Series | HBL Heavy Duty |
| Type | Watertight Connector Body |
| Amperage Rating | 32 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Package Quantity | 1 |
