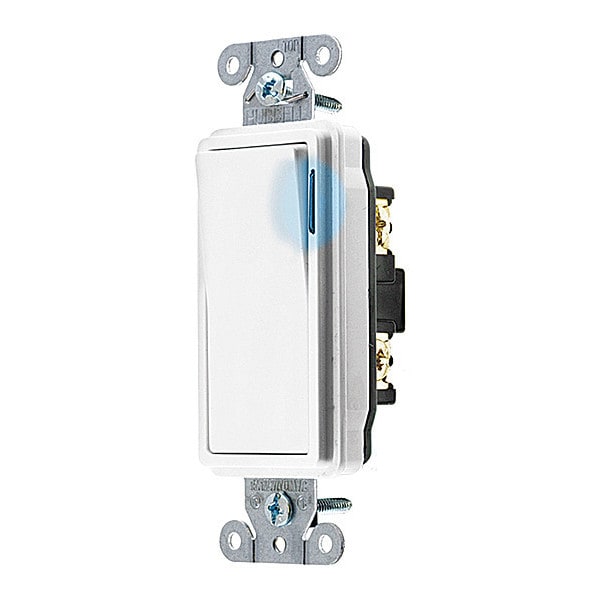

Interruptor de pared iluminado de 1 polo y 20 amperios en color blanco, para corriente de 120 voltios. Fabricado por Hubbell Wiring Device-Kellems.
| Item | Illuminated Wall Switch |
|---|---|
| Switch Type | Single Pole |
| Switch Style | Rocker |
| Amps AC | 20 A |
| Color | White |
| Voltage AC | 120 V |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Commercial |
| Rated HP | 1 |
| Description/Special Features | Light On with Load Off |
| Antimicrobial | No |
| Standards | UL Listed |
| Voltage | 120/277V AC |
| Current Rating | 20 A |
| Minimum Wire Size | 14 AWG |
| Overall Width | 1.4 in |
| Minimum Operating Temperature | -40 deg F |
| Switch Material | Thermoplastic |
| Horsepower Rating | 1 HP |
| Overall Height | 1-1/2 in |
| Illuminated | Yes |
| Maximum Wire Size | 10 AWG |
| Number of Switches | 1 |
| Grounding | Grounded |
| Maximum Operating Temperature | 75 deg C |
| Wire Connection Type | Screw Terminals |
| Housing Material | Thermoplastic |
| Features | Automatic Self-Grounding Staple |
| Resistance Properties | Impact Resistant |
| Contact Material | Silver Alloy |
| Market | Commercial |
| Voltage Rating | 120/277V AC |
| Type | Decorator, Rocker |
| Width | 1.43 in |
| Height | 1.54 in |
| Length | 4.28 in |
| Style | Single Pole |
| Listing and Certifications | UL Listed and CSA Certified |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Product Type | Toggle-switches |
| Max. Continuous Current | 20 A |
| Switch Handle Positions | 2 |
| Switch Grade | Decorator Series |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Rocker Color | White |
| Temperature Rise | 30°C maximum at rated current |
| Amperage | 20 A |
| Max. Working Voltage | 277V AC |
| Wiring Style | Back and Side Wired |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Flammability | UL 94V-2 |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Number Of Poles | Single Pole |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Material | Thermoplastic |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Dimensions | 4.28 in x 1.43 in x 1.54 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Wire Size | #14 AWG to #10 AWG |
| Amperage Rating | 20 A |
| Industry Standard(s) | UL Listed |
| Item Type | Style Line Illuminated Decorator Switch |
| Indicator | Light On with Load Off |
| Indicator(s) Type | Blue LED |
| Series | Illuminated |
| Current / Amperage Rating | 20 A |
| Connectivity | Back and Side Wired |
| Package Quantity | 1 |
