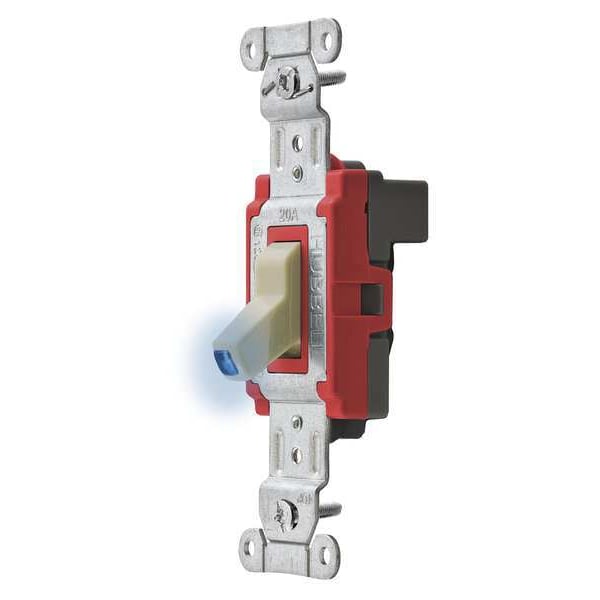

Este interruptor de pared iluminado de 1 polo y 20 amperios en color marfil es perfecto para cualquier espacio. Diseñado para brindar comodidad y estilo, este interruptor es fácil de instalar y ofrece un rendimiento confiable.
| Item | Illuminated Wall Switch |
|---|---|
| Switch Type | Single Pole |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | Ivory |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back |
| Application Environment | Commercial |
| Description/Special Features | Light On with Load Off |
| Antimicrobial | No |
| Rated HP | 1 to 2 |
| Standards | UL Listed |
| Market | Industrial |
| Resistance Properties | Impact Resistant |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 75 deg C |
| Voltage Rating | 120/277V AC |
| Minimum Operating Temperature | -40 deg F |
| Horsepower Rating | 2 HP |
| Overall Height | 1.7 in |
| Locking Style | Not Applicable |
| Illuminated | Yes |
| Current Rating | 20 A |
| Overall Width | 1.3 in |
| Number of Switches | 1 |
| Wire Connection Type | Modular Wiring |
| Type | Toggle |
| Length | 4.18 in |
| Style | Single Pole |
| Height | 1.74 in |
| Width | 1.3 in |
| Base Material | Thermoplastic, Black |
| Flammability | UL 94V-2 |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Max. Continuous Current | 20 A |
| Temperature Rise | 30°C maximum at rated current |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Max. Working Voltage | 277V AC |
| Top Material | Thermoplastic, Red |
| Toggle Color | Ivory |
| Contacts | Silver Alloy |
| Toggle Material | Thermoplastic |
| Operating Temperature | Max continuous: 75°C continuous: -40°C without impact, Min |
| Terminals | Brass |
| Terminal Accommodations | Uses SNAPConnect Connector |
| Item Type | Single Pole Illuminated Toggle Switch |
| Indicator(s) Type | Blue LED |
| Material | Thermoplastic |
| Series | Illuminated |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector |
| Current / Amperage Rating | 20 A |
| Number Of Poles | Single Pole |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Dimensions | 4.18 in x 1.3 in x 1.74 in |
| Amperage Rating | 20 A |
| Indicator | Light On with Load Off |
| Industry Standard(s) | UL Listed |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Package Quantity | 1 |
