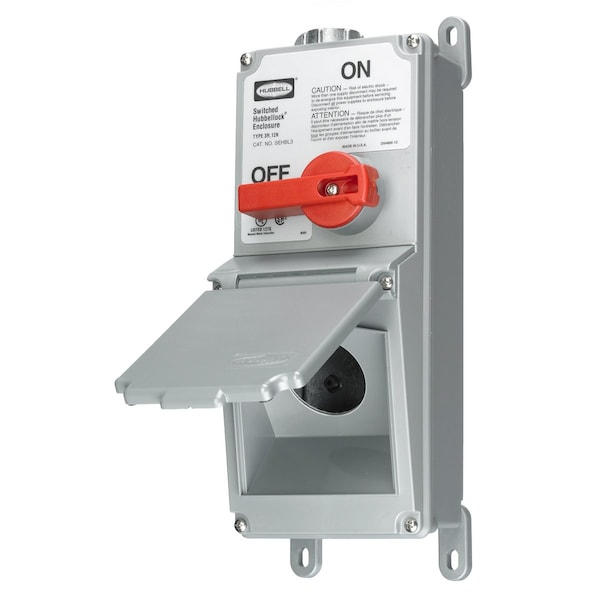

Recinto con interruptor accionado por palanca, grado industrial, con receptáculo, tres polos, 30A Hubbellock, 3 fase 600V AC, tornillos de terminal.
| Item | Switched Hubbellock Enclosure |
|---|---|
| Color | Gray |
| IP Rating | IP54 |
| Operating Temp. Range | -40 to 75 deg C |
| Standards | UL/CSA |
| Gauge/Conductor | 10 AWG |
| Type | Switched Enclosure |
| Performance | 600V RMS - Electrical - Operations Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V minimum Electrical - Environmental - Max. Working Voltage External fully adjustable feet - Mechanical - Product Identification Identification and ratings are part of external label and receptacle face - Mechanical - Terminal Identification In accordance with UL 746C - Mechanical - Mounting In accordance with UL, CSA and international conventions - Environmental - Flammability IP54 suitability - Environmental - Operating Temperature Maximum continuous +75°C Minimum continuous -40°C - Environmental - UV Resistance Mechanical 10,000 cycles Electrical 6,000 cycles - Mechanical - Impact Resistance UL94 to 5 VA and V0 classification - Environmental - Moisture Resistance |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 3,000V minimum |
| Industry Standard(s) | CSA Certified Type 3R and 12K Enclosure Rating Listed to UL Standard |
| Wire Size | #10 AWG |
| Style | For Hubbellock devices |
| Package Quantity | 1 |
