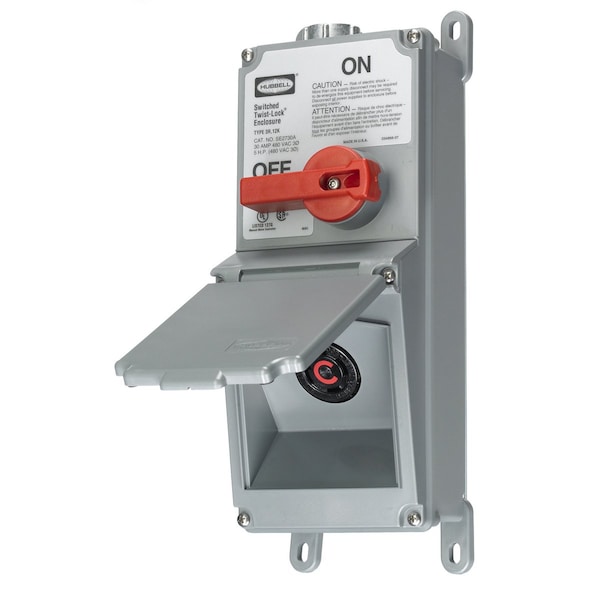

Caja de interruptores de grado industrial accionada por palanca con carcasa Twist-Lock con receptáculo HBL2730 precableado, Twist-Lock® de 30A, 3 fases 480 V CA, NEMA L16-30R.
| Item | Switched Enclosure |
|---|---|
| Voltage | 600V |
| HP | 10 HP |
| Color | Gray |
| IP Rating | IP54 |
| Width | 4.88 in |
| Operating Temp. Range | -40 to 75 deg C |
| Height | 4.38 in |
| Length | 11.38 in |
| Standards | UL/CSA |
| Features | All Materials are UV Stabilized |
| Mounting | Feet |
| Gauge/Conductor | 10 AWG |
| Type | Switched Enclosure |
| Dielectric Strength | Withstands 3,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Item Type | Switched Safety Enclosures |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V minimum Electrical - Max. Working Voltage - 600V RMS Electrical - Operations - Mechanical 10,000 cycles Electrical 6,000 cycles Environmental - Flammability - UL94 to 5 VA and V0 classification Environmental - Moisture Resistance - IP54 suitability Environmental - Operating Temperature - Maximum continuous +75°C Minimum continuous -40°C Environmental - UV Resistance - All materials are UV stabilized Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External fully adjustable feet Mechanical - Product Identification - Identification and ratings are part of external label and receptacle face Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Horsepower - Maximum | 10 |
| Nema Rating | L16-30R |
| Voltage Rating Description | 3 Phase 480 VAC |
| Industry Standard(s) | CSA Certified Type 3R and 12K Enclosure Rating Listed to UL Standard |
| Dimensions | 11.38 in x 4.88 in x 4.38 in |
| Package Quantity | 1 |
