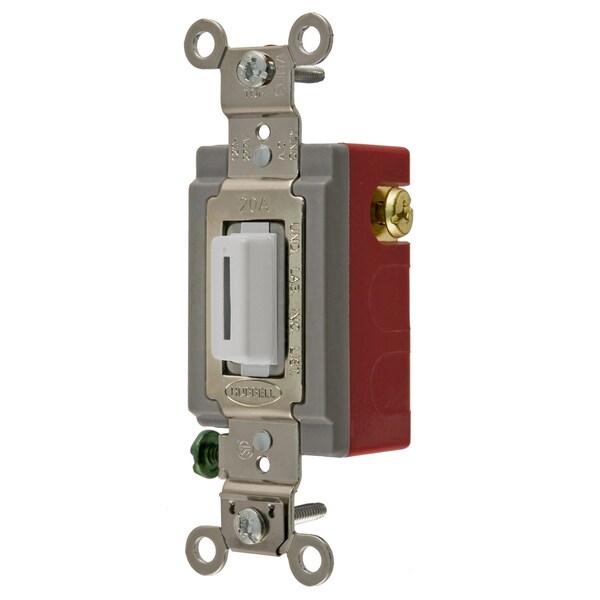

Dispositivos de conmutador de bloqueo de grado industrial ideales para aplicaciones de propósito general de corriente alterna. Cuenta con un diseño de doble tirón de polos único y una capacidad de 20 amperios a 120/277 voltios. Color blanco para una fácil identificación. Incluye guía de llave para una fácil instalación.
| Color | White |
|---|---|
| Series | Extra Heavy Duty |
| Style | Single Pole Double Throw |
| Length | 4.06 in |
| Height | 1.89 in |
| Type | Locking |
| Width | 1.31 in |
| Number Of Poles | Single Pole |
| Connectivity | Back and Side Wired |
| Voltage Rating | 120-277 VAC |
| Action | SPDT |
| Application | Back and Side Wired |
| Wire Size | #14 AWG to #10 AWG |
| Amperage | 20 A |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Dimensions | 4.06 in x 1.31 in x 1.89 in |
| Current Rating | 20 A |
| Contact Configuration | Momentary |
| Carton Quantity | 10 |
| Temp. Rise | 30°C maximum at rated current |
| Temperature Rise | 30°C maximum at rated current |
| Max. Continuous Current | 20 A |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. Solid and stranded copper wire only |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Nylon Wall Plate | NP1W |
| Top Material | Thermoset |
| Terminal Screws | Brass |
| Base Material | Thermoset, Red |
| Contacts | Silver Alloy |
| Flammability | UL 94V-2 |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Ground Screw | Brass (Green) |
| Max. Working Voltage | 277V AC |
| Toggle Color | White |
| Key Guide | Metallic, White |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only |
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | UL Listed |
| Voltage Rating Description | 120-277 VAC |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 20 A |
| Package Quantity | 1 |
