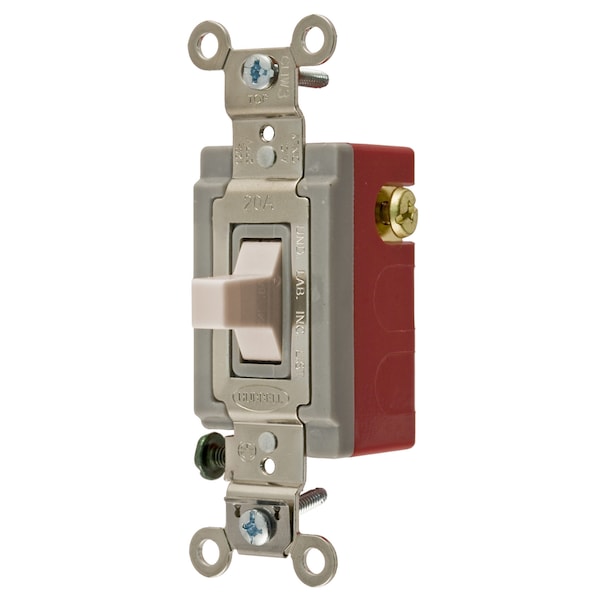

Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws Toggle
| Color | Light Almond |
|---|---|
| Width | 1.31 in |
| Type | Toggle |
| Height | 1.89 in |
| Style | Single Pole Double Throw |
| Length | 4.06 in |
| Series | Extra Heavy Duty |
| Carton Quantity | 10 |
| Amperage | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Action | SPDT |
| Application | Back and Side Wired |
| Voltage Rating | 120-277 VAC |
| Connectivity | Back and Side Wired |
| Standard | UL Listed |
| Contact Configuration | Momentary |
| Number Of Poles | Single Pole |
| Temp. Rise | 30°C maximum at rated current |
| Current Rating | 20 A |
| Dimensions | 4.06 in x 1.31 in x 1.89 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Wire Size | #14 AWG to #10 AWG |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only |
| Package Quantity | 1 |
