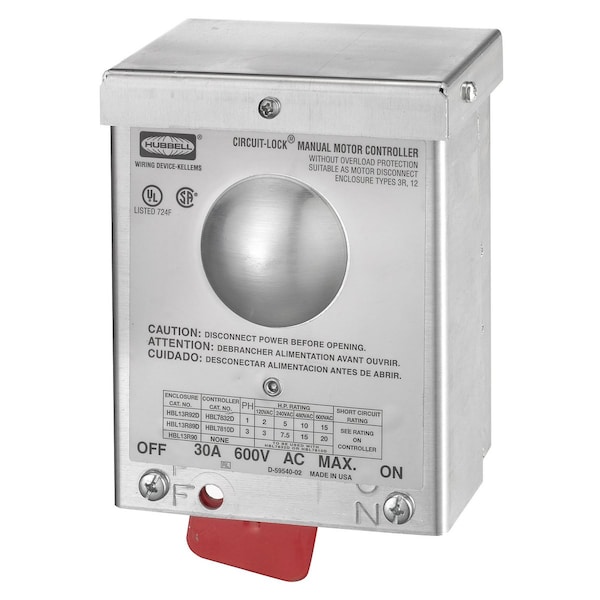

Grado Industrial, Interruptores de Palanca, Desconectadores de Motor, Doble Polo, 30A 600V AC, Conexión trasera y lateral, Aluminio, Caja NEMA 3R con interruptor.
| Style | Standard Duty |
|---|---|
| Phase | Single Phase |
| Max. Voltage | 600V AC |
| Application | Red Slide |
| Primary Connections/Pole | 2 |
| Height | 3.3 in |
| Width | 4.4 in |
| Length | 5.52 in |
| Type | Disconnect Switches |
| Series | Non-Fused |
| Load Capacity | Inductive |
| Operating Cycles | 10,000 Cycles Minimum |
| Current / Amperage Rating | 30 A |
| Dimensions | 5.52 in x 4.4 in x 3.3 in |
| Wattage | 18000 W |
| Material - Mounting Hardware | Screw Mounting |
| Horsepower - Maximum | 15 |
| Connectivity | Pressure Terminal Screws |
| Enclosure Type | NEMA 3R |
| Current Rating | 30 A |
| Amperage Rating | 30 A |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor and Outdoor |
| Package Quantity | 1 |
