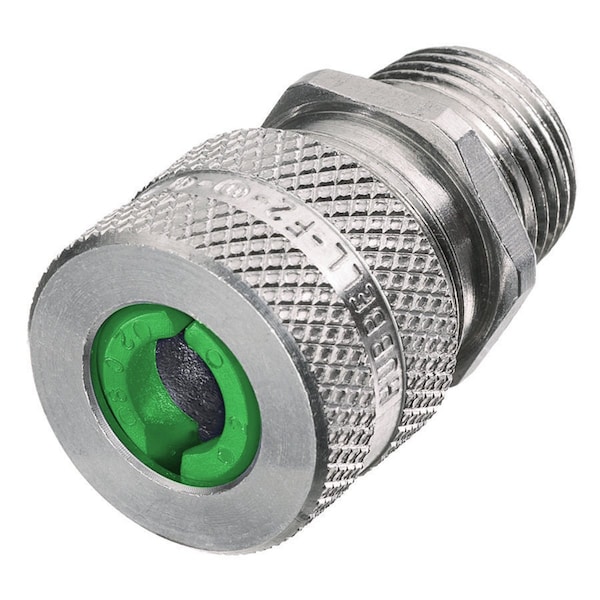

Kellems Wire Management, Cord Connectors, Straight Male, .06"-.13", 3/8", Aluminum
| Style - Connector | Straight Male |
|---|---|
| Item | Cord Connectors |
| Cable Opening Min. | 0.06 in |
| Color | Green |
| Material | Aluminum |
| Cable Opening Max. | 0.13 in |
| Knockout Size | 0.67 to 0.70 in |
| Type | Male |
| Standards | UL 514B, CSA Certified |
| Display Size | 3/8 NPT |
| Mounting Hardware Material | Locknut or Tapped Opening |
| Number Of Conductors | Single |
| Carton Quantity | 50 |
| Nema Rating | NEMA Type 4, 4X, 12 and 13 |
| Hub Size | 3/8 |
| Series | Standard Duty |
| Brand | Hubbell Wiring Device-Kellems |
| Cord Dia. Range | 0.06 to 0.13 in |
| Color Code | Green |
| Application | Straight Male- Form 1 |
| Temp. Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Standard | UL Listed |
| Environmental Rating | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Industry Standard(s) | UL Listed |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Conductor Range | 0.06 to 0.13 in |
| Item Type | Cord Connectors |
| Performance | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C) |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Package Quantity | 1 |
