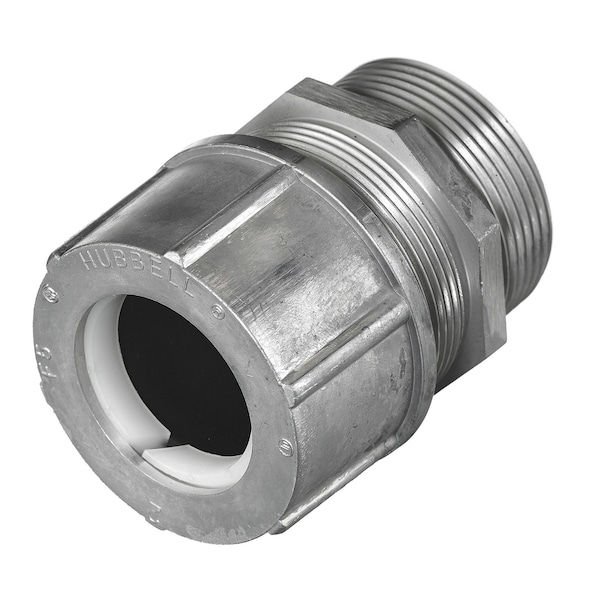

Kellems Wire Management, Cord Connectors, Straight Male, 1.25-1.38", 1", Aluminum
| Style - Connector | Straight Male |
|---|---|
| Knockout Size | 1.36 to 1.41 in |
| Cable Opening Max. | 1.38 in |
| Item | Cord Connectors |
| Cable Opening Min. | 1-1/4 in |
| Standards | UL 514B, CSA Certified |
| Material | Aluminum, Cast |
| Color | White |
| Type | Male |
| Cord Dia. Range | 1-1/4 to 1.38 in |
| Nema Rating | NEMA Type 4, 4X, 12 and 13 |
| Application | Straight Male- Form 5 |
| Mounting Hardware Material | Locknut or Tapped Opening |
| Number Of Conductors | Single |
| Series | Standard Duty |
| Brand | Hubbell Wiring Device-Kellems |
| Carton Quantity | 10 |
| Display Size | 1 NPT |
| Standard | UL Listed |
| Temp. Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Environmental Rating | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Hub Size | 1 |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Conductor Range | 1-1/4 to 1.38 in |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Performance | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C) |
| Item Type | Cord Connectors |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Industry Standard(s) | UL Listed |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
