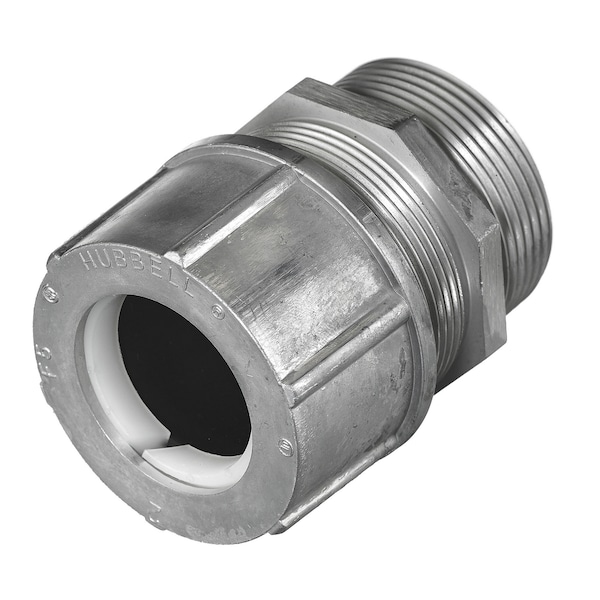

Kellems Wire Management, Cord Connectors, Straight Male, 2.63-2.81", 3", Aluminum
| Style - Connector | Straight Male |
|---|---|
| Material | Aluminum, Cast |
| Cable Opening Max. | 2.81 in |
| Type | Male |
| Standards | UL 514B, CSA Certified |
| Color | White |
| Knockout Size | 3.58 to 3.63 in |
| Item | Cord Connectors |
| Cable Opening Min. | 2.63 in |
| Cord Dia. Range | 2.63 to 2.81 in |
| Standard | UL Listed |
| Application | Straight Male- Form 8 |
| Carton Quantity | 3 |
| Temp. Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Environmental Rating | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Number Of Conductors | Single |
| Display Size | 3 NPT |
| Series | Standard Duty |
| Nema Rating | NEMA Type 4, 4X, 12 and 13 |
| Mounting Hardware Material | Locknut or Tapped Opening |
| Brand | Hubbell Wiring Device-Kellems |
| Hub Size | 3 |
| Item Type | Cord Connectors |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Conductor Range | 2.63 to 2.81 in |
| Industry Standard(s) | UL Listed |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Performance | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +240°F (-34°C to +115°C) |
| Package Quantity | 1 |
