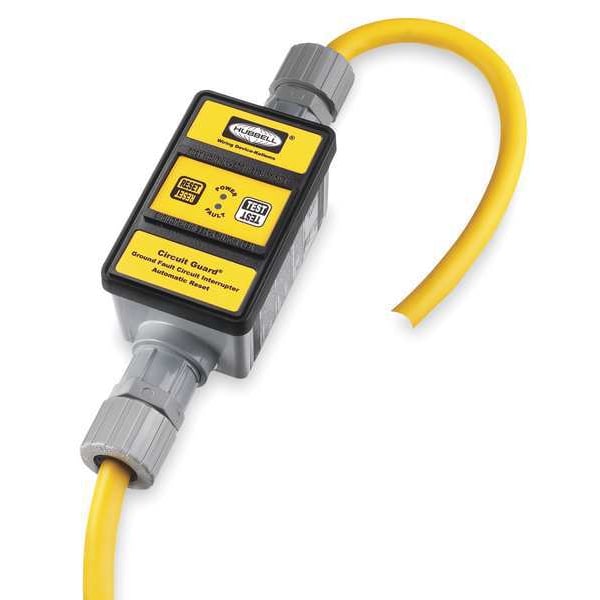

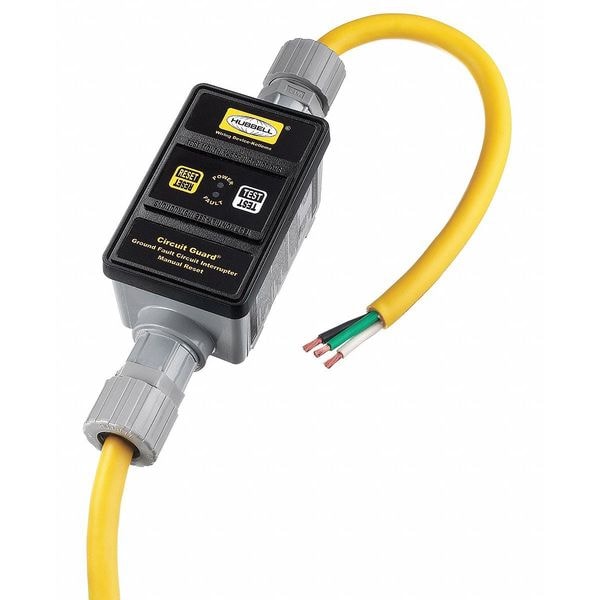

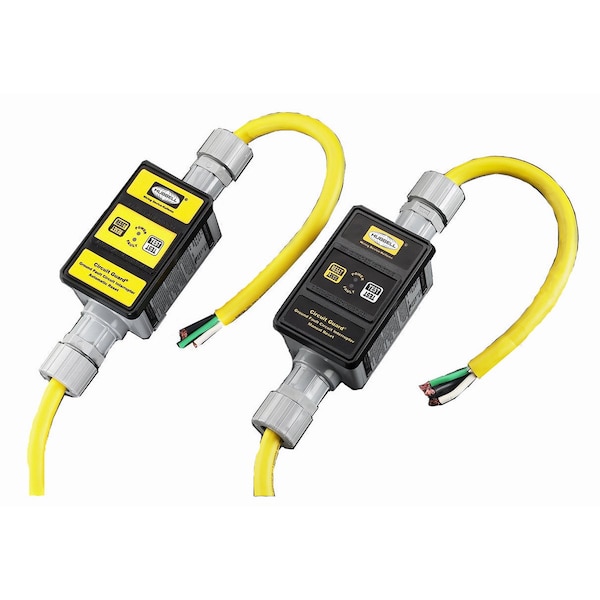

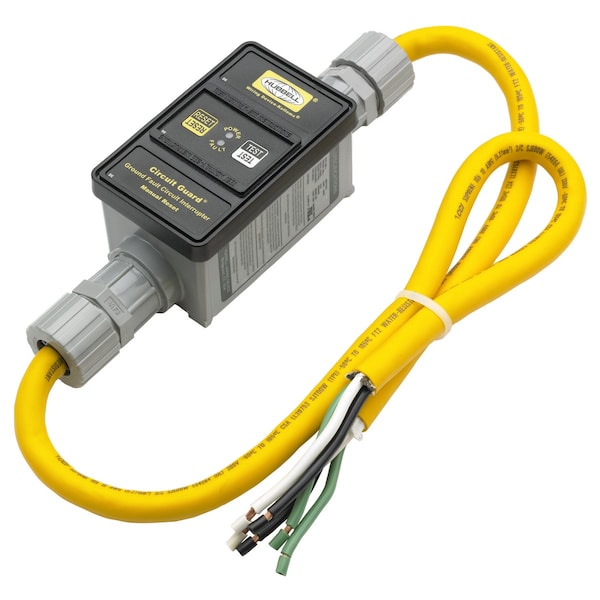

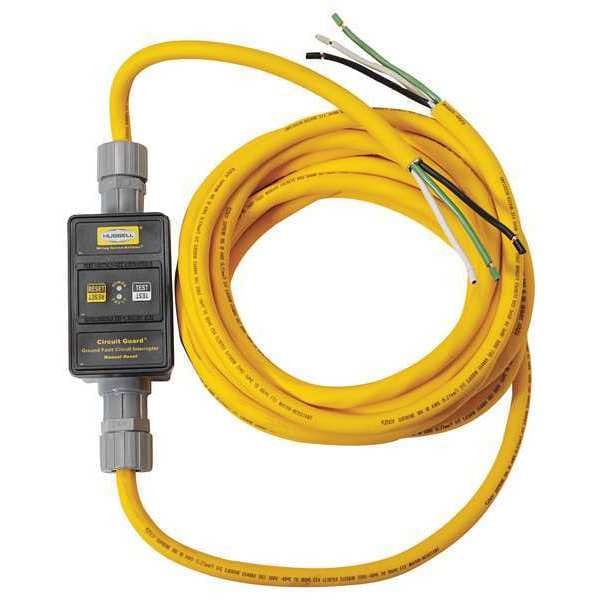

El Line Cord GFCI de Hubbell Wiring Device-Kellems cuenta con 6 pies de longitud, color amarillo, corriente de 30 amperios y voltaje de 120/240VAC. Este producto ofrece protección contra fugas a tierra para mayor seguridad.
| Item | Industrial Grade |
|---|---|
| Amps | 30 |
| Number of Outlets | 0 |
| Voltage | 120/240V AC |
| Receptacle Configuration | Bare Wire |
| Plug Configuration | Bare Wire |
| Reset Type | Manual |
| Max. Amps | 30 |
| Voltage Rating | 120/240 VAC |
| Enclosure Rating | Nema 4X |
| Number of Poles | 3 |
| Wire Size | 10 AWG |
| Number of Wires | 4 |
| Cord Length | 6 ft |
| Color | Black |
| Gauge/Conductor | 3.3333 |
| NEC Cord Designation | SJGOOW |
| Self-Testing | No |
| Portable GFCI Plug Cord Length | 12 in |
| Hz | 60 Hz |
| NEMA Plug Configuration | Bare Wire |
| Portable GFCI Receptacle Cord Length | 6 ft |
| Standards | CSA, UL |
| NEMA Receptacle Configuration | Bare Wire |
| Material | Valox |
| Outlet Configuration | User Wired Connection |
| Plug Configuration - Ext. Cords and Power Strips | No Plug |
| Range of Lengths | 5 to 10 ft. |
| Material of Construction | Valox |
| Receptacle Cord Length | 6 ft |
| Housing Material | Valox |
| Number of Conductors | 4 |
| Plug Style | No Plug |
| Trade Designation | SJGOOW |
| Plug Cord Length | 12 in |
| Type | Portable, Straight Blade |
| Application | Line Cord Only No Devices |
| Number of Strands | Multi |
| Temp. Rating | -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F) |
| Series | Extra Heavy Duty |
| Conductor Type | Copper |
| Carton Quantity | 5 |
| Connectivity | Plug-In |
| Standard | UL Listed |
| Current Rating | 30 A |
| Style | Manual Set |
| Jacket Material | PVC |
| Construction | Fabricated |
| Brand | Hubbell Wiring Device-Kellems |
| UPC | 783586000000 |
| Weight | 4.5 lb |
| Outside Diameter | 0.335 |
| Insulating Material | Elastomer |
| Amperage | 30 A |
| Conductor Size | #10 AWG |
| Max Humidity | 0.95 |
| Device Style | Wireable |
| Trip Level | 4 to 6 mA |
| GFCI Product Type | portable |
| Set Style | Manual |
| Voltage Range | 120V AC +10% -15% |
| Operating Temp | Deg F -30 to 150 (Deg C -30 to 66) |
| Trip Time | 0.025 seconds |
| Frequency | 60 Hz |
| Package Quantity | 1 |
