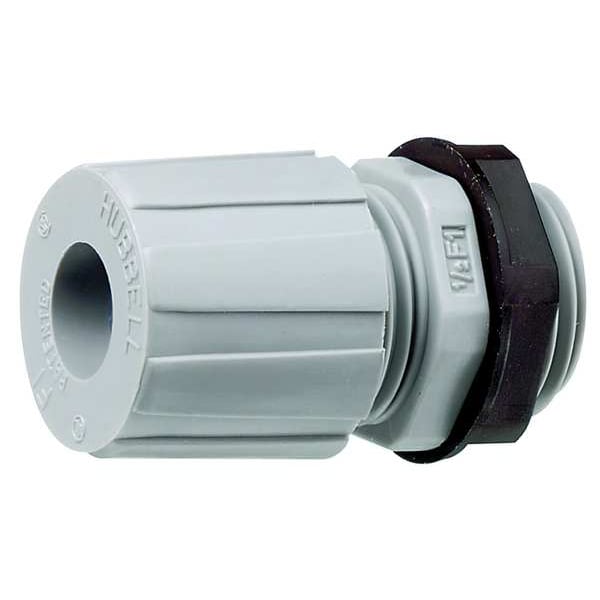

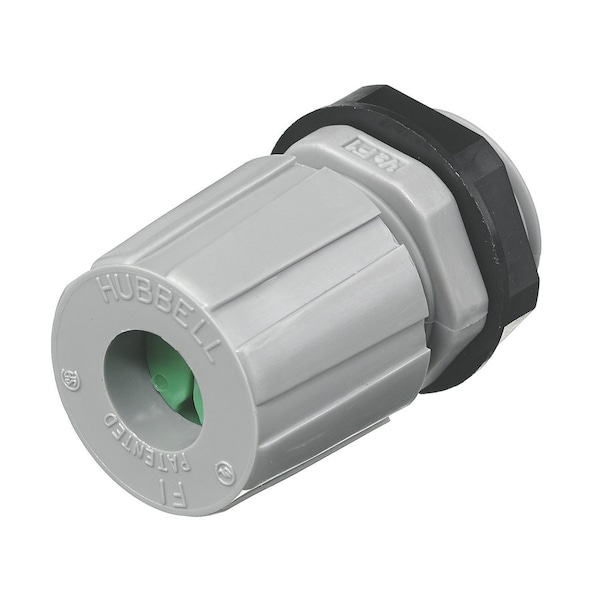

Liquid Tight Connector, 1/2 in., Gray
| Item | Liquid Tight Cord Connector |
|---|---|
| Style - Connector | Straight |
| Conduit Size | 1/2" |
| Material | Nylon |
| Box Connection | 1/2 in MNPT |
| Standards | CSA LR27378, UL E54218(M) |
| Length - Box to End of Connector | 1-1/8 in |
| Material - Cord Connector | Nylon |
| Color | Gray |
| Gland Color Code | No Code |
| Hazardous Location Rating | Not Rated |
| Insulated | Yes |
| Number of Cords | 1 |
| Length - External Strain Relief | No External Strain Relief |
| Strain Relief Type | No External Strain Relief |
| Material - External Strain Relief | No External Strain Relief |
| Body Color - Cord Connector | Gray |
| Item - Cord Connector | Liquid Tight Cord Connector |
| Length | 3-3/4 in |
| Cord Dia. Range | 0.31 to 0.38 in |
| Connector Type | Straight |
| Hub Size | 1/2 in MNPT |
| For Use With | Kellems Wire Management |
| Thread Gender | Male |
| Connection Orientation | Straight |
| IP Rating | IP66 |
| Grommet Color Code | No Code |
| Collar Material | Nylon |
| Liquid Tight | Yes |
| Thread Type | NPT Thread |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Thread Size | 1/2 in |
| Minimum Operating Temperature | -30 deg F |
| Compatible Conduit Trade Size | 1/2 in |
| Body Color | Gray |
| Body Material | Nylon |
| Series | Miniature |
| Maximum Operating Temperature | 225 deg F |
| Dimension E A/C | 0.99 in |
| Effective Operating Temperature | -30°F to +225°F |
| Product Type | Cord Connectors |
| Dimension B | 1.56" (39.6) Ref. |
| Dimension A | 1 in |
| Material/Style | Nylon Miniature |
| Dimension D | .45" Throat Dia. |
| Certifications | UL Listed, CSA Certified |
| Dimension E A/F | 0.92 in |
| Recommended Knockout Hole Size | .82"-.84" (20.9-21.3) |
| Dimension C | .46" |
| Cord Connector Body Style | Straight Male |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Cord Diameter Range | .31"- .38" |
| Package Quantity | 1 |
