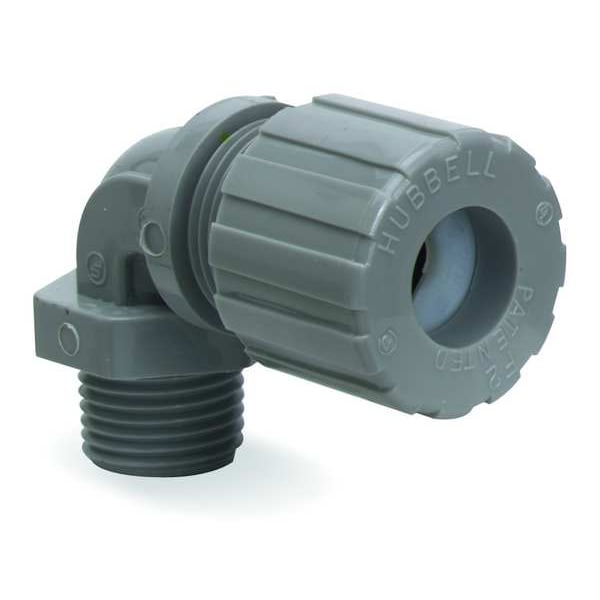

Liquid Tight Connector, 1/2in., 90 deg, Brn
| Item | Liquid Tight Cord Connector |
|---|---|
| Material | Nylon |
| Box Connection | 1/2 in MNPT |
| Length | 2-1/2 in |
| Number of Cords | 1 |
| Cord Dia. Range | 1/2 to 0.63 in |
| Material - External Strain Relief | No External Strain Relief |
| Style - Connector | Degrees |
| Body Color - Cord Connector | Gray |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Material - Cord Connector | Nylon |
| Length - External Strain Relief | No External Strain Relief |
| Strain Relief Type | No External Strain Relief |
| Insulated | Yes |
| Standards | CSA LR27378, UL E54218(M) |
| Item - Cord Connector | Liquid Tight Cord Connector |
| Color | Brown |
| Conduit Size | 1/2" |
| Length - Box to End of Connector | 1-7/16 in |
| Gland Color Code | Brown |
| Connector Type | Degrees |
| For Use With | Kellems Wire Management |
| Hub Size | 1/2 in MNPT |
| IP Rating | IP66 |
| Liquid Tight | Yes |
| Compatible Conduit Trade Size | 1/2 in |
| Maximum Operating Temperature | 225 deg F |
| Thread Gender | Male |
| Form Size | F2 |
| Minimum Operating Temperature | -30 deg F |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| NEMA Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X |
| For Minimum Cable OD | 1/2 in |
| Body Material | Nylon |
| Collar Material | Nylon |
| Thread Size | 1/2 in |
| Connection Orientation | 90 Degrees |
| Thread Type | NPT Thread |
| Grommet Color Code | Brown |
| For Maximum Cable OD | 0.63 in |
| Resistance Properties | Corrosion Resistant |
| Environmental Rating | Hazardous Locations |
| Body Color | Gray |
| Dimension A | 1.41 in |
| Certifications | UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111. |
| Effective Operating Temperature | -30°F to +225°F |
| Product Type | Cord Connectors |
| Cord Connector Body Style | 90 Degree Male |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Dimension E A/F | 1.12 in |
| Dimension E A/C | 1.23 in |
| Color Code | Brown |
| Dimension C | .55" |
| Recommended Knockout Hole Size | .86"- .91" (21.8-23.0) |
| Dimension D | .58" Throat Dia. |
| Dimension B | 2.50" (63.5) Ref. |
| Cord Diameter Range | .50"- .63" (12.7- 15.9) |
| Hazardous Locations | Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b). |
| Material/Style | Nylon Standard Style |
| Dimension G | 1.32" Dia. |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Series | Standard Duty |
| Industry Standard(s) | UL Listed |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Type | 90° Male |
| Performance | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C) |
| Application | 90 Degree Male- Form 2 |
| Conductor Range | 1/2 to 0.63 in |
| Number Of Conductors | Single |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | 1/2" NPT |
| Item Type | Cord Connectors |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Package Quantity | 1 |
