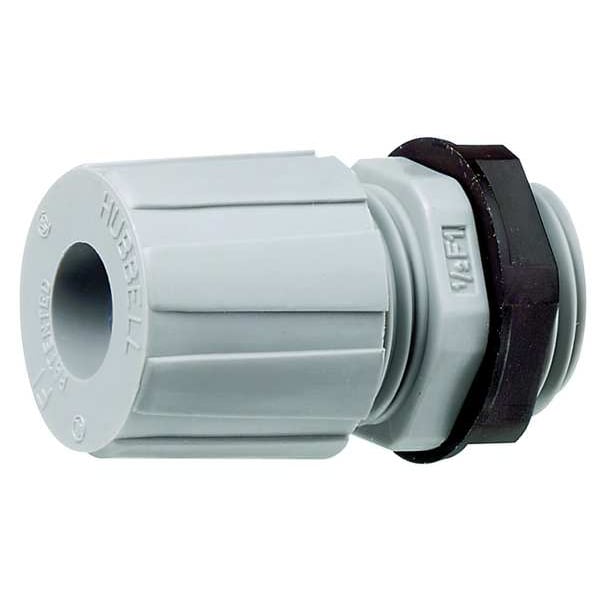

Liquid Tight Connector, 1/4 in., Gray
| Item | Liquid Tight Cord Connector |
|---|---|
| Material | Nylon |
| Box Connection | 1/4 in MNPT |
| Body Color - Cord Connector | Gray |
| Hazardous Location Rating | Not Rated |
| Insulated | Yes |
| Length - Box to End of Connector | 1-5/16 in |
| Conduit Size | 1/4" |
| Length - External Strain Relief | No External Strain Relief |
| Connector Type | Straight |
| Style - Connector | Straight |
| Strain Relief Type | No External Strain Relief |
| Standards | CSA LR27378, UL E54218(M) |
| Number of Cords | 1 |
| Material - Cord Connector | Nylon |
| Gland Color Code | No Code |
| Material - External Strain Relief | No External Strain Relief |
| Item - Cord Connector | Liquid Tight Cord Connector |
| Cord Dia. Range | 0.14 to 0.2 in |
| Length | 2-35/64 in |
| Color | Gray |
| Hub Size | 1/4 in MNPT |
| For Use With | Kellems Wire Management |
| Maximum Operating Temperature | 225 deg F |
| Collar Material | Nylon |
| Connection Orientation | Straight |
| IP Rating | IP66 |
| Compatible Conduit Trade Size | 1/4 in |
| Body Color | Gray |
| Minimum Operating Temperature | -30 deg F |
| Body Material | Nylon |
| Liquid Tight | Yes |
| Thread Gender | Male |
| Series | Miniature |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Thread Type | NPT Thread |
| Thread Size | 1/4 in |
| Grommet Color Code | No Code |
| Effective Operating Temperature | -30°F to +225°F |
| Dimension C | .40" |
| Dimension A | 0.65 in |
| Cord Connector Body Style | Straight Male |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Dimension D | .29" Throat Dia. |
| Dimension E A/C | 0.65 in |
| Dimension B | 1.30" (33.0) Ref. |
| Cord Diameter Range | .14"- .20" (3.4-5.1) |
| Dimension E A/F | 0.6 in |
| Certifications | UL Listed, CSA Certified |
| Material/Style | Nylon Miniature |
| Product Type | Cord Connectors |
| Recommended Knockout Hole Size | .53"-.54" (13.4-13.6) |
| Package Quantity | 1 |
