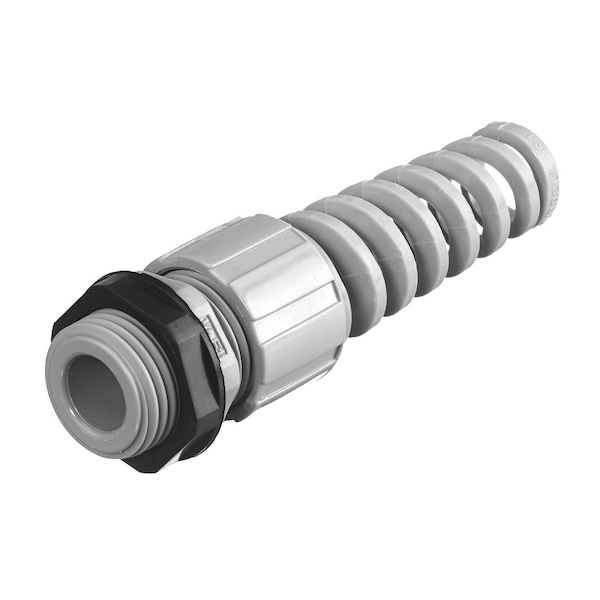

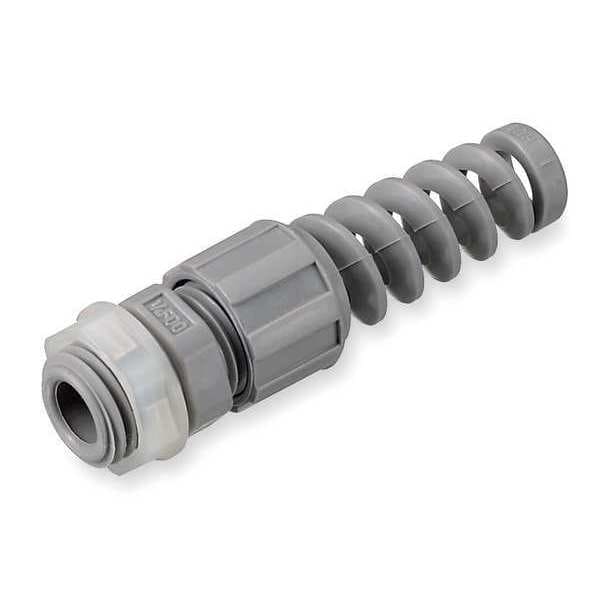

Liquid Tight Connector, 1/4in, Spiral, Gray
| Item - Cord Connector | Liquid Tight Cord Connector |
|---|---|
| Item | Threaded Connectors |
| Style - Connector | Straight |
| Hub Size | 1/4 in MNPT |
| Conduit Size | 1/4" |
| Cord Dia. Range | 0.14 to 0.2 in |
| Material | Nylon |
| Box Connection | 1/4 in MNPT |
| Color | Gray |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Nylon |
| Material - External Strain Relief | Nylon |
| Gland Color Code | No Code |
| Standards | CSA LR27378, UL E54218(M) |
| Number of Cords | 1 |
| Body Color - Cord Connector | Gray |
| Connector Type | Straight |
| Length - Box to End of Connector | 7/8 in |
| Length - External Strain Relief | 1 1/4 in |
| Strain Relief Type | Spiral |
| Hazardous Location Rating | Not Rated |
| Insulated | Yes |
| Length | 2-35/64 in |
| Grommet Color Code | No Code |
| Compatible Conduit Trade Size | 1/4 in |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -30 deg F |
| Series | Miniature |
| Collar Material | Nylon |
| Thread Type | NPT Thread |
| Body Material | Nylon |
| Maximum Operating Temperature | 225 deg F |
| IP Rating | IP66 |
| Thread Size | 1/4 in |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Body Color | Gray |
| Thread Gender | Male |
| Liquid Tight | Yes |
| Flammability | Hubbell Juniors have a UL 94-V2 rating. |
| Material/Style | Nylon Miniature |
| Dimension E | 0.27 in |
| Dimension F A/F | 0.6 in |
| Dimension B | 2.55" (64.8) Ref. |
| Dimension D | .29" Throat Dia. |
| Dimension C | .40" |
| Recommended Knockout Hole Size | .53"-.54" (13.4-13.6) |
| Dimension A | 0.65 in |
| Effective Operating Temperature | -30°F to +225°F |
| Product Type | Cord Connectors |
| Cord Diameter Range | .14"- .20" |
| Cord Connector Body Style | Straight Male |
| Certifications | UL Listed, CSA Certified |
| Dimension F A/C | 0.65 in |
| Package Quantity | 1 |
