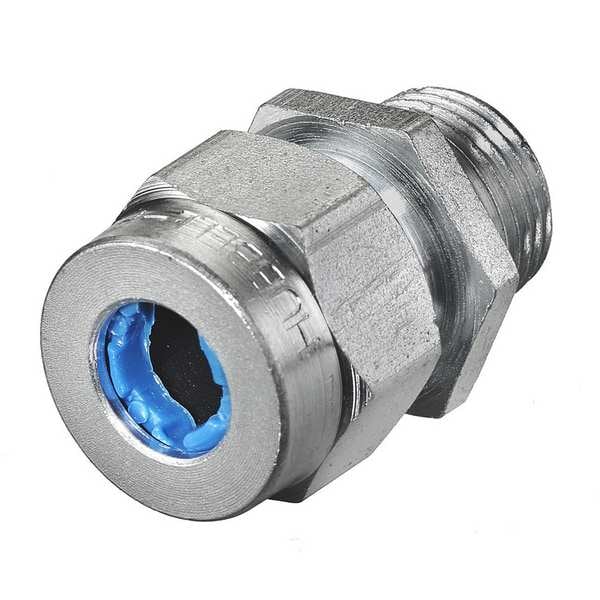

Liquid Tight Connector, 3/8 in., Blue
| Item | Liquid Tight Cord Connector |
|---|---|
| Material | Steel |
| Box Connection | 3/8 in MNPT |
| Gland Color Code | Blue |
| Material - External Strain Relief | No External Strain Relief |
| Length - Box to End of Connector | 7/8 in |
| Material - Cord Connector | Steel |
| Connector Type | Straight |
| Standards | CSA LR27378, UL E54218(M) |
| Body Color - Cord Connector | Silver |
| Conduit Size | 3/8" |
| Item - Cord Connector | Liquid Tight Cord Connector |
| Number of Cords | 1 |
| Cord Dia. Range | 0.38 to 0.44 in |
| Color | Blue |
| Length | 1-7/32 in |
| Insulated | No |
| Length - External Strain Relief | No External Strain Relief |
| Style - Connector | Straight |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Strain Relief Type | No External Strain Relief |
| For Use With | Kellems Wire Management |
| Hub Size | 3/8 in MNPT |
| Form Size | F1 |
| Liquid Tight | Yes |
| Compatible Conduit Trade Size | 3/8 in |
| Minimum Operating Temperature | -30 deg F |
| Grommet Color Code | Blue |
| Resistance Properties | Corrosion Resistant |
| For Minimum Cable OD | 0.38 in |
| Thread Size | 3/8 in |
| Connection Orientation | Straight |
| Environmental Rating | Hazardous Locations |
| NEMA Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X |
| Thread Gender | Male |
| Maximum Operating Temperature | 225 deg F |
| Body Material | Steel |
| Body Color | Silver |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| For Maximum Cable OD | 0.44 in |
| IP Rating | IP66 |
| Collar Material | Steel |
| Thread Type | NPT Thread |
| Overall Length | 1-1/4 in |
| Bushing Material | Neoprene |
| Material/Style | Zinc Plated Steel |
| Recommended Knockout Hole Size | .67"- .70" (17.0-17.8) |
| Product Type | Cord Connectors |
| Cord Connector Body Style | Straight Male |
| Dimension D | .45" Throat Dia. |
| Certifications | UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111. |
| Dimension A A/C | 0.98 in |
| Cord Diameter Range | .38"- .44" (9.5- 11.1) |
| Effective Operating Temperature | -30°F to +225°F |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Hazardous Locations | Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b). |
| Dimension A A/F | .88" |
| Dimension C | .42" |
| Dimension B | .90" (22.9) Ref. |
| Dimension E A/C | 0.99 in |
| Dimension E A/F | 0.88 in |
| Color Code | Blue |
| Display Size | 3/8" NPT |
| Conductor Range | 0.38 to 0.44 in |
| Application | Straight Male- Form 1 |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Performance | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C) |
| Type | Straight Male |
| Item Type | Cord Connectors |
| Industry Standard(s) | UL Listed |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Series | Standard Duty |
| Number Of Conductors | Single |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
