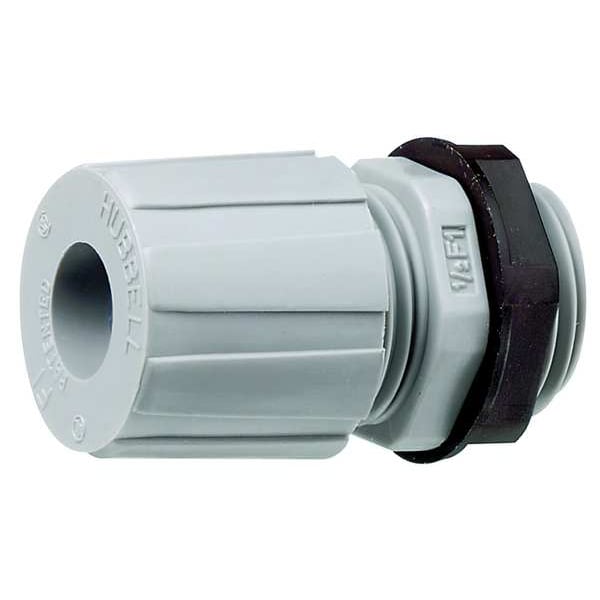

Liquid Tight Connector, 3/8 in., Gray
| Item | Liquid Tight Cord Connector |
|---|---|
| Item - Cord Connector | Liquid Tight Cord Connector |
| Style - Connector | Straight |
| Hub Size | 3/8 in MNPT |
| Cord Dia. Range | 0.15 to 0.21 in |
| Material | Nylon |
| Conduit Size | 3/8" |
| Color | Gray |
| Box Connection | 3/8 in MNPT |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Nylon |
| Material - External Strain Relief | No External Strain Relief |
| Gland Color Code | No Code |
| Standards | CSA LR27378, UL E54218(M) |
| Number of Cords | 1 |
| Connector Type | Straight |
| Body Color - Cord Connector | Gray |
| Length - Box to End of Connector | 1-7/16 in |
| Length | 3-1/8 in |
| Insulated | Yes |
| Strain Relief Type | No External Strain Relief |
| Length - External Strain Relief | No External Strain Relief |
| Hazardous Location Rating | Not Rated |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Thread Type | NPT Thread |
| Body Color | Gray |
| Connection Orientation | Straight |
| Thread Size | 3/8 in |
| Compatible Conduit Trade Size | 3/8 in |
| Liquid Tight | Yes |
| Maximum Operating Temperature | 225 deg F |
| Minimum Operating Temperature | -30 deg F |
| Series | Miniature |
| Collar Material | Nylon |
| IP Rating | IP66 |
| Grommet Color Code | No Code |
| Body Material | Nylon |
| Thread Gender | Male |
| Dimension C | .41" |
| Dimension E A/F | 3/4 in |
| Dimension E A/C | 0.81 in |
| Product Type | Cord Connectors |
| Dimension B | 1.44" (36.6) Ref. |
| Recommended Knockout Hole Size | .67"-.68" (16.9-172) |
| Dimension D | .36" Throat Dia. |
| Cord Diameter Range | .15"- .21" |
| Certifications | UL Listed, CSA Certified |
| Dimension A | 0.81 in |
| Material/Style | Nylon Miniature |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Cord Connector Body Style | Straight Male |
| Effective Operating Temperature | -30°F to +225°F |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Number Of Conductors | Single |
| Industry Standard(s) | UL Listed |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Performance | Environmental - Flammability - Hubbell Juniors have a UL 94V-2 rating Environmental - Operating Temperature - -30°F to +225°F (-34°C to +107°C) |
| Type | Connector |
| Conductor Range | 0.15 to 0.21 in |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Nema Rating | IP66 |
| Item Type | Cord Connectors |
| Display Size | 3/8" NPT |
| Application | Straight Male Connector |
| Package Quantity | 1 |
