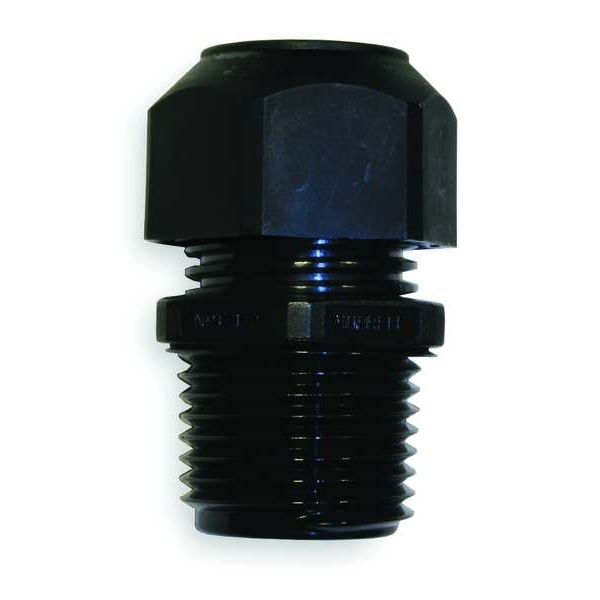

Liquid Tight Cord Connector, Insulated, Straight, Nylon, 1-11/16 in L, 1/2 in MNPT, Black
| Item | Liquid Tight Cord Connector |
|---|---|
| Item - Cord Connector | Liquid Tight Cord Connector |
| Male/Female | Male |
| Style - Connector | Straight |
| Hub Size | 1/2 in MNPT |
| Material | Nylon |
| Cord Dia. Range | 0.17 to 0.45 in |
| Color | Black |
| Box Connection | 1/2 in MNPT |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Nylon |
| Material - External Strain Relief | No External Strain Relief |
| Hub Trade Size | 1/2" |
| Liquid Tight / Dust Tight | Liquid Tight |
| Gland Color Code | No Code |
| Number of Cords | 1 |
| Standards | CSA C22.2 No. 18, UL 514B, VDE |
| Body Color - Cord Connector | Black |
| Connector Type | Straight |
| Length - Box to End of Connector | 1-11/16 in |
| Min. Throat Dia. | 0.59 in |
| Length - External Strain Relief | No External Strain Relief |
| Insulated | Yes |
| Hazardous Location Rating | Not Rated |
| Length | 1.7 in |
| Strain Relief Type | No External Strain Relief |
| Overall Length | 1-11/16 in |
| For Maximum Cable OD | 0.45 in |
| Collar Material | Nylon |
| Body Color | Black |
| Thread Size | 1/2 in |
| IP Rating | IP66 |
| Thread Gender | Male |
| Grommet Color Code | No Code |
| Thread Type | NPT Thread |
| Connection Orientation | Straight |
| Compatible Conduit Trade Size | 1/2 in |
| Liquid Tight | Yes |
| Minimum Operating Temperature | -22 deg F |
| Body Material | Nylon |
| Series | Low Profile NPT |
| Maximum Operating Temperature | 225 deg F |
| For Minimum Cable OD | 0.17 in |
| Environmental Rating | Not Flammable |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Material/Style | Nylon Low Profile |
| Certifications | UL 514B, CSA C22.2 No. 18 |
| Operating temperature | -30°C to 100°C |
| Product Type | Cord Connectors |
| Protection Class | IP68 |
| Dimension C | .591 |
| Cord Diameter Range | .17"- .45" |
| Dimension A | 1.378 in |
| Flammability | UL 94 V-0 |
| Cord Connector Body Style | Straight Male |
| Dimension D | .47" |
| Sealing Grommet Material | Neoprene |
| Dimension F | 0.945 in |
| Dimension E | 1.063 in |
| Dimension B | 0.787 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| Performance | Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - -22°F to 225°F (-30°C to 107°C) Environmental - Protection Class - IP66 Suitability |
| Display Size | 1/2" NPT |
| Type | Connector |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Nema Rating | IP66 |
| Industry Standard(s) | UL Listed |
| Number Of Conductors | Single |
| Temperature Rating | Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) |
| Application | Straight Male Connector |
| Conductor Range | 0.17 to 0.45 in |
| Item Type | Low Profile Cord Connectors |
| Package Quantity | 1 |
