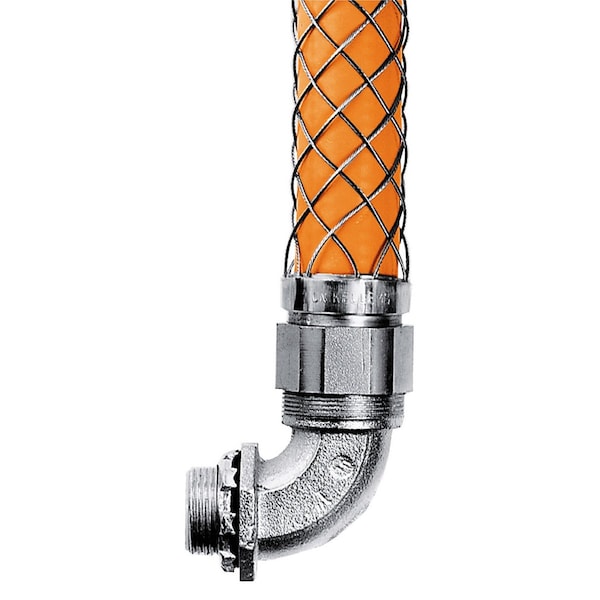

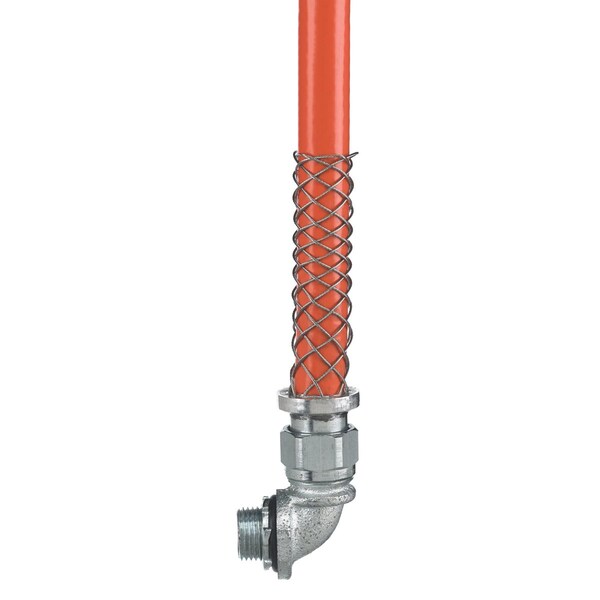

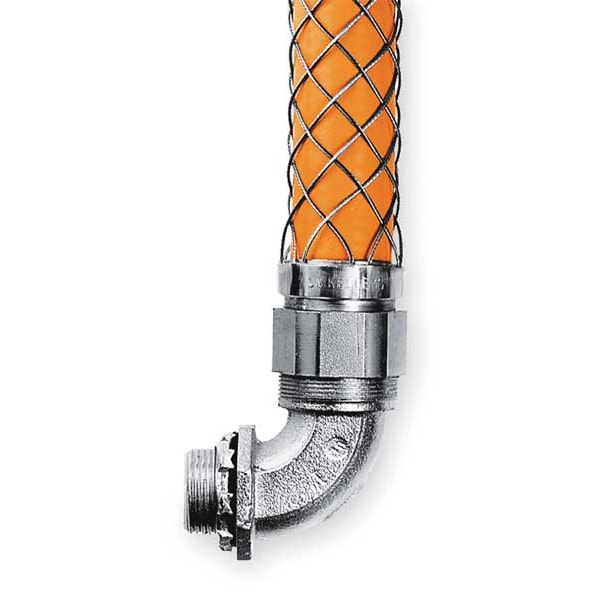

Liquid Tight Grip, 90 Deg, 1-1/2 In.
| Item | Liquid-Tight Conduit Fitting |
|---|---|
| Fitting Style | 90 Degrees |
| Fitting Type | Male |
| Material | Stainless Steel Mesh, Steel Fitting |
| Mesh Length | 13 1/2 in |
| Insulated / Uninsulated | Uninsulated |
| Style - Connector | Degrees |
| Color - Conduit Fitting | Silver |
| External Grounding Lug | No |
| Conduit Trade Size | 1-1/2 in |
| Item - Conduit Fitting | Liquid Tight Conduit Fitting with Grip |
| Hazardous Location Rating | Class I, Div. 2, Class II, Div. 1 and 2, Class III, Div. 1 and 2 |
| Use With - Conduit | Flexible Liquid Tight Non-Metallic Type A Conduit |
| Mesh Material | Stainless Steel |
| Standards | UL |
| Box Connection | 1-1/2 in MNPT |
| Conduit Fitting Material | Steel |
| Insulated | Non-Insulated |
| Series | Liquidtight Conduit |
| UPC | 783585000000 |
| Style | For UL Type A |
| Type | Degree With Male Fitting |
| Standard | UL Listed |
| For Use With | Flexible Liquid Tight Non-Metallic Type A Conduit |
| Connection Orientation | 90 Degrees Elbow |
| Elbow Angle | 90 deg |
| Compatible Conduit Type | Flexible Liquid Tight Conduit |
| Connector Style | 90 Degrees |
| Trade Size | 1-1/2 in |
| Compatible Knockout Trade Size | 1-1/2 in |
| Color | Gray |
| Dimension I | 13-1/2 in |
| Operating Temperature | -30°F to +225°F |
| Dimension G | 2.578" |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2. |
| Liquidtight Connector Body Style | 90 Degree |
| Certifications | UL Listed CSA Certified |
| Liquidtight System Type | Flexible Non-Metallic Liquidtight Conduit Grip Type A |
| Dimension H | 2-1/2 in |
| Recommended Knockout Hole Size | 1.969 to 2.016 (5.00 - 5.12) |
| Product Type | Liquidtight System |
| Fitting Flammability Rating | UL 94-V2 |
| Mesh Grip Flammability Rating | UL 94-HB |
| Dimension F | 0.656 in |
| Dimension E | 2.562 in |
| Package Quantity | 1 |
