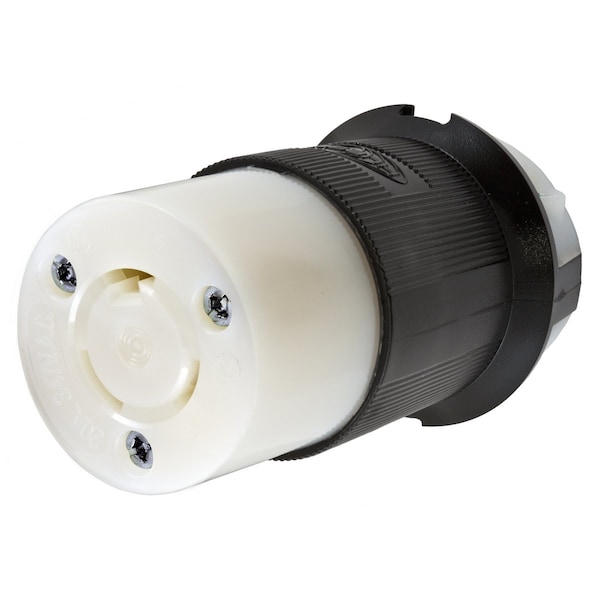

LKG CONN, 20A 2P3W, 347V, L24-20R, B/W
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 20 |
| Voltage | 347V AC |
| Number of Poles | 2-Pole |
| NEMA Configuration | L24-20R |
| Wiring Style | Insulgrip |
| Color - Plugs and Receptacles | Black, White |
| Color | Noir, blanc |
| IP Rating | IP20 Suitability |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Standards | Certified for current interrupting at full rated current |
| Material | Nylon |
| Application | Heavy Duty Industrial |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Dia. Range | .360"-.930" |
| Weight | 0.4 |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Type | Connector Body |
| Length | 2.26 in |
| Display Size | Standard |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Nema Rating | L24-20R |
| Amperage Rating | 20 A |
| Item Type | 20A Connector |
| Current Rating | 20 A |
| Dimensions | 2.26 in x 2.26 in x 3.86 in |
| Wire Size | #16 AWG to #8 AWG |
| Insulation | Insulated Body |
| Connectivity | Pressure Terminal Screws |
| Voltage Rating Description | 347 VAC |
| Cable Range | 0.36 to 0.93 in |
| Width | 2.26 in |
| Number Of Wires | 3-Wire |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Cord Range | 0.360"-0.930" |
| Material - Mounting Hardware | Cord Mounted |
| Height | 3.86 in |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
