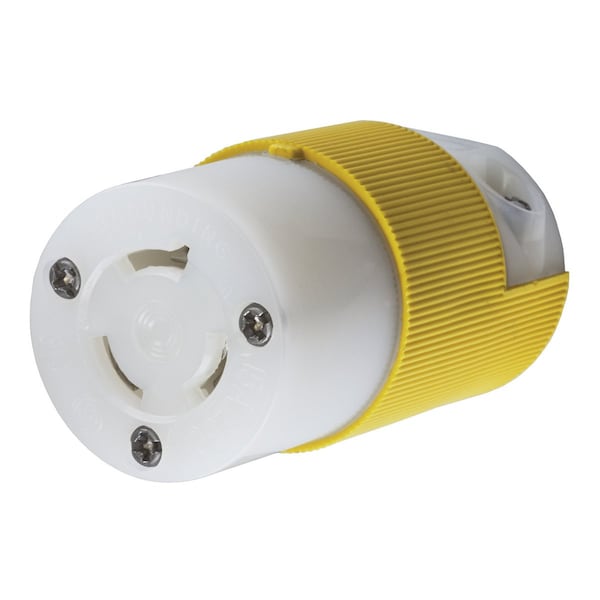

Conector LKG, CM, 15A 250V L6-15R
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 15 |
| Voltage | 250V AC |
| Number of Poles | 2-Pole |
| NEMA Configuration | L6-15R |
| Wiring Style | Chem, Marine |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| IP Rating | IP20 |
| Body Material | Natural White Nylon |
| Material | .032" Bronze |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL/CSA |
| Application | Heavy Duty Industrial |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Dielectric Strength | 2,000V minimum |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight | 0.2 |
| Type | Connector Body |
| Cord Dia. Range | .230"-.720" |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Height | 2.78 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 1.53 in x 1.53 in x 2.78 in |
| Current / Amperage Rating | 15 A |
| Amperage Rating | 15 A |
| Number Of Wires | 3-Wire |
| Voltage Rating Description | 125 V |
| Insulation | Insulated Body |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | L6-15R |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Cable Range | 0.23 to 0.72 in |
| Display Size | Standard |
| Cord Range | 0.230"-0.720" |
| Length | 1.53 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | 15A Connector |
| Material - Mounting Hardware | Cord Mounted |
| Width | 1.53 in |
| Wire Size | #18 AWG to #10 AWG |
| Current Rating | 15 A |
| Package Quantity | 1 |
