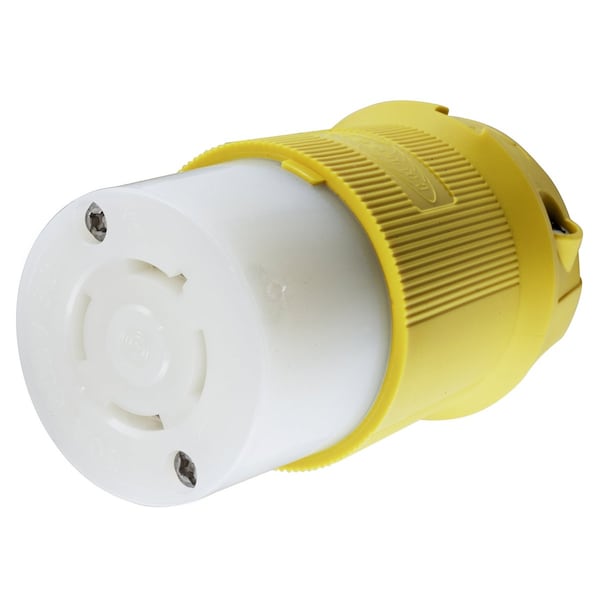

LKG CONN, CM, 30A 3PH 600V L17-30R
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 30 |
| Voltage | 600V AC |
| Number of Poles | 3-Pole |
| NEMA Configuration | L17-30R |
| Wiring Style | Chem, Marine |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| Body Material | Natural White Nylon |
| Special Features | Terminals identified in accordance with UL 498 |
| Material | .031" (.8) Brass |
| IP Rating | IP20 Suitability |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Phase | Three Phase |
| Application | Heavy Duty Industrial/Marine |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight | 0.4 |
| Cord Dia. Range | .350"-1.150" |
| Type | Connector Body |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Dielectric Strength | Withstands 2,000V minimum |
| Cable Range | 0.35 to 1.15 in |
| Number Of Wires | 4-Wire |
| Operating Temperature | -40°C to 85°C |
| Item Type | 30A Corrosion Resistant Insulgrip® Connector |
| Environmental Conditions | Corrosion Resistant |
| Voltage Rating Description | 600 VAC |
| Amperage Rating | 30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Width | 2.33 in |
| Cord Range | 0.350"-1.150" |
| Current Rating | 30 A |
| Height | 3.86 in |
| Length | 2.33 in |
| Display Size | Standard |
| Insulation | Insulated Body |
| Wire Size | #16 AWG to #8 AWG |
| Nema Rating | L17-30R |
| Connectivity | Pressure Terminal Screws |
| Dimensions | 2.33 in x 2.33 in x 3.86 in |
| Industry Standard(s) | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
| Current / Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Package Quantity | 1 |
