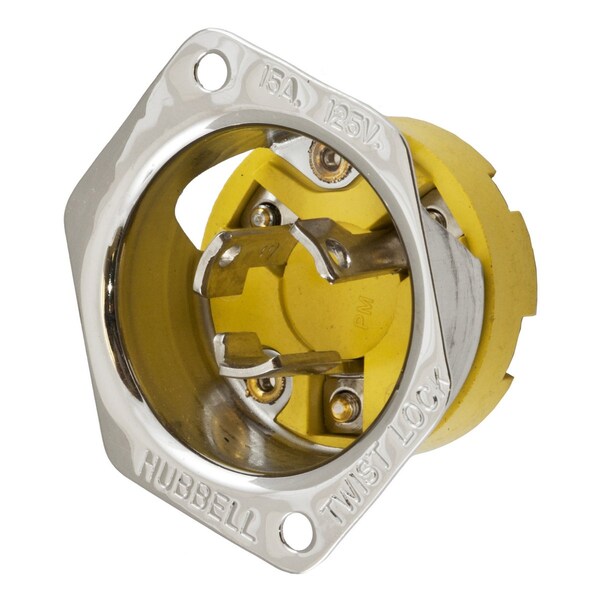

LKG FLG-INLT, CM, 15A 125V L5-15P
| Item | Flanged Inlet |
|---|---|
| NEMA Configuration | L5-15P |
| Voltage | 125V AC |
| Amps | 15 |
| Color | Yellow |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Chem, Marine |
| Material | zinc plated |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| IP Rating | IP20 Suitability |
| Special Features | Molded In or Stamped On |
| Flange Material | Stainless Steel |
| Application | Wiring Devices |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Wire Size | 15A #14 AWG |
| Lock Type | Twist-lock |
| Operating Temp. | Maximum Continuous 75A Deg C Minimum -40A Deg C (w/o impact) |
| Weight (Lbs.) | 0.1 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Number Of Wires | 3-Wire |
| Connectivity | Screw Terminals |
| Current / Amperage Rating | 15 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Nema Rating | L5-15P |
| Voltage Rating Description | 125 V |
| Insulation | Insulated Body |
| Display Size | Standard Sized Product |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Item Type | 15A Flanged Inlet |
| Industry Standard(s) | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
| Type | Flanged Inlet |
| Current Rating | 15 A |
| Amperage Rating | 15 A |
| Package Quantity | 1 |
