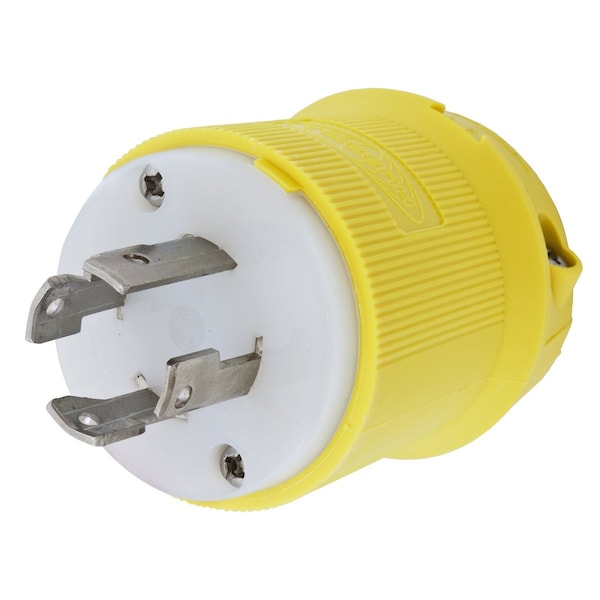

LKG PLUG, CM, 30A 3PH 480V L16-30P
| Item - Plugs and Receptacles | Chem/Marine Plug |
|---|---|
| Length | 2.33 in |
| Amps - Plugs and Receptacles | 30A |
| Voltage - Plugs and Receptacles | 3 Phase 480V AC |
| Number of Poles | 3-Pole, 4-Wire Grounding |
| Phase | Three Phase |
| Color | Yellow |
| Material | Nylon |
| HP | 10 |
| Application | Heavy Duty Industrial |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green),UL/CSA |
| Cord Size | .35"-1.15" |
| NEMA Configuration | L16-30P |
| IP Rating | IP20 |
| Weight (Lbs.) | 0.35 |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | CSA, HB or better per UL 22.2 No. 0.6 |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Blade Material | Brass |
| Current Rating | 30 A |
| Width | 2.33 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Dimensions | 2.33 in x 2.33 in x 2-3/4 in |
| Cable Range | 0.35 to 1.15 in |
| Type | Plugs |
| Voltage Rating Description | 480 VAC |
| Item Type | 30A Corrosion Resistant Insulgrip® Plug |
| Amperage Rating | 30 A |
| Current / Amperage Rating | 30 A |
| Display Size | Standard Sized |
| Cord Range | 0.350"-1.150" |
| Nema Rating | L16-30P |
| Number Of Wires | 4-Wire |
| Cord Type | All Listed Portables |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Corrosion Resistant |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 2-3/4 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Connectivity | Pressure Terminal Screws |
| Horsepower - Maximum | 10 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
