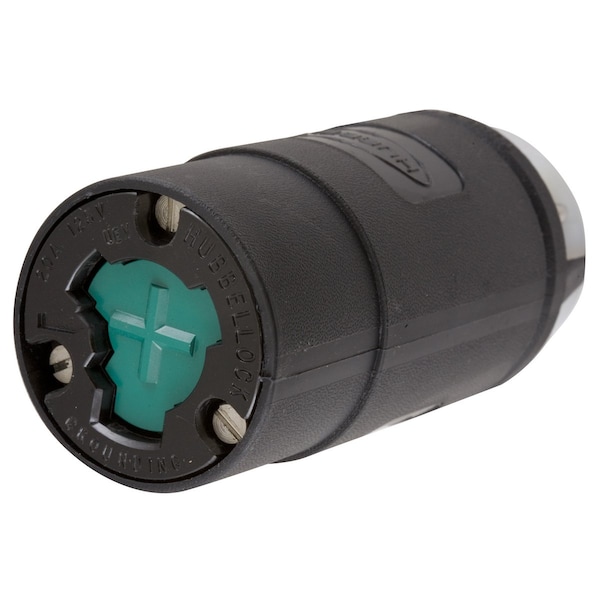

Locking Devices, Hubbellock, Industrial, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 20 |
| Voltage | 125V AC |
| Number of Poles | 2-Pole |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Body Material | Black Thermoset |
| Material | .032" Bronze |
| IP Rating | IP30 Suitability |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL/CSA |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Application | Heavy Duty Industrial |
| Dielectric Strength | 2,000V minimum |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight | 0.35 |
| Cord Dia. Range | .320"- .660" |
| Flame Resistant | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Type | Connector Body |
| Current / Amperage Rating | 20 A |
| Dimensions | 1.63 in x 1.72 in x 3.56 in |
| Width | 1.72 in |
| Item Type | 20A Grounding Hubbellock® Female Connector |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 20 A |
| Current Rating | 20 A |
| Height | 3.56 in |
| Cable Range | 0.32 to 0.66 in |
| Number Of Wires | 3-Wire |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - HB or better Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #12 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Length | 1.63 in |
| Display Size | Standard |
| Wire Size | #16 AWG to #12 AWG |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Connectivity | Pressure Terminal Screws |
| Insulation | Insulated Body |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
