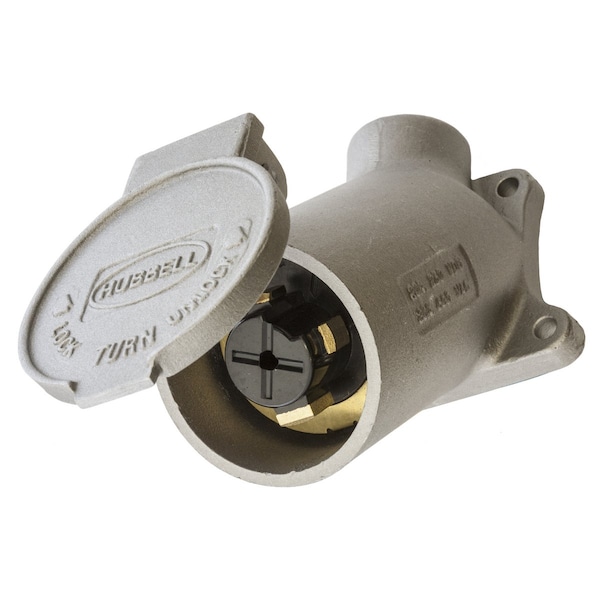

Locking Devices, Hubbellock, Industrial, Flanged Inlet, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Angled Surface Mounted Housing.
| Item | Flanged Inlet |
|---|---|
| Voltage | 600V AC,250V DC |
| Color | Metallic |
| Number of Poles | 3-Pole |
| Wiring Style | Standard |
| IP Rating | IP30 Suitability |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Special Features | Molded In or Stamped On |
| Material | zinc plated Steel |
| Application | Extra Heavy Duty Industrial |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Flammability | UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors |
| Wire Size | #10 AWG - #6 AWG solid or stranded copper wire only. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 1.9 |
| Lock Type | Hubbellock |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current Rating | 20 A |
| Item Type | 30A, 20A ® Flanged Inlet |
| Length | 5.94 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 30 A |
| Dimensions | 5.94 in x 3-1/4 in x 5.09 in |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Dielectric Strength | Withstands 2,000V minimum |
| Width | 3-1/4 in |
| Current / Amperage Rating | 30 A |
| Insulation | Insulated Body |
| Number Of Wires | 4-Wire |
| Voltage Rating Description | 250 VDC/600 VAC |
| Connectivity | Back Wired Screw Terminals |
| Type | Flanged Inlet |
| Display Size | Standard Sized Product |
| Height | 5.09 in |
| Package Quantity | 1 |
