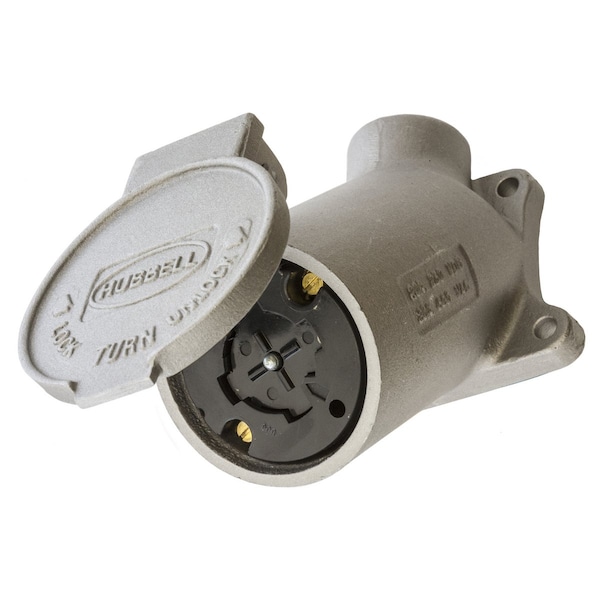

Dispositivos de bloqueo, Hubbellock, Industrial, Receptáculo Bridado, 30A 600V CA, 20A 250V CC, 3 Polos 4 cables a tierra, No NEMA
| Item | Single Receptacle |
|---|---|
| Voltage | 600V AC,250V DC |
| Color | Metallic |
| Number of Poles | 3-Pole |
| Wiring Style | Standard |
| Material | zinc plated Steel |
| Special Features | Molded In or Stamped On |
| IP Rating | IP30 Suitability |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Application | Heavy Duty Industrial |
| Weight (Lbs.) | 2 |
| Base Material | Cast Aluminum |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Wire Size | #10 AWG - #6 AWG solid or stranded copper wire only. |
| Lock Type | Hubbellock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Spring Material | Bronze |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Height | 5.09 in |
| Length | 5.93 in |
| Width | 3.06 in |
| Current Rating | 20 A |
| Amperage Rating | 30 A |
| Current / Amperage Rating | 30 A |
| Material - Mounting Hardware | Screw Mounting |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Connectivity | Back Wired Screw Terminals |
| Voltage Rating Description | 250 VDC/600 VAC |
| Number Of Wires | 4-Wire |
| Dimensions | 5.93 in x 3.06 in x 5.09 in |
| Dielectric Strength | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Item Type | 30A, 20A Grounding Hubbellock® Receptacle |
| Package Quantity | 1 |
