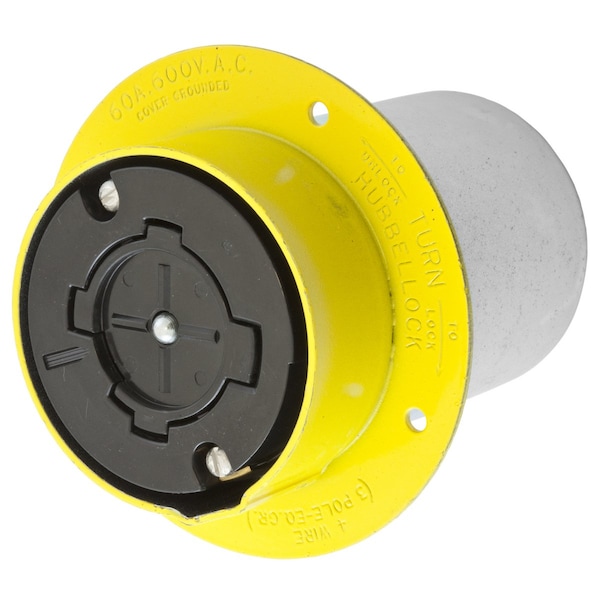

Locking Devices, Hubbellock, Industrial, Flanged Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Non NEMA, Screw Terminal, Yellow
| Item | Flanged Receptacle |
|---|---|
| Voltage | 600V AC |
| Color | Yellow |
| Number of Poles | 3-Pole |
| Phase | Multi Phase |
| IP Rating | IP44 |
| Material | zinc plated Steel |
| Flange Material | Steel Weldment |
| Special Features | Molded In or Stamped On |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Application | Heavy Duty Industrial |
| Spring Material | Bronze |
| Operating Temp. | Maximum Continuous 75A Deg C Minimum -40A Deg C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #6 AWG; #8 AWG - #4 AWG solid or stranded copper wire only. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Lock Type | Hubbellock |
| Weight (Lbs.) | 2.05 |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 60 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #8 AWG - #4 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Length | 4.12 in |
| Current / Amperage Rating | 60 A |
| Type | Flanged Receptacle |
| Display Size | Standard Sized Product |
| Current Rating | 60 A |
| Height | 4.53 in |
| Voltage Rating Description | 600 V |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| Number Of Wires | 4-Wire |
| Width | 2.88 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Screw Terminals |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Material - Mounting Hardware | Screw Mounting |
| Dimensions | 4.12 in x 2.88 in x 4.53 in |
| Item Type | 60A Hubbellock® Receptacle |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
